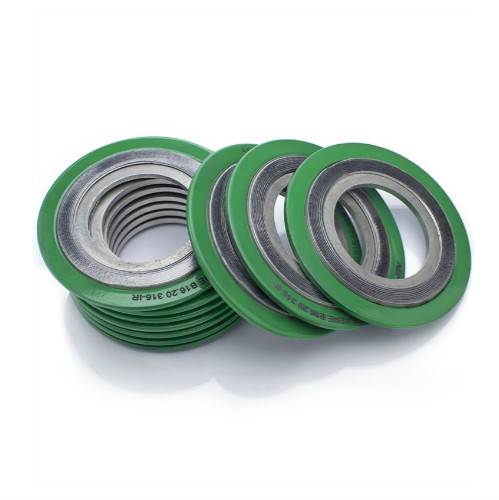

Spiral Wound Gasket Inner Ring
HOME ProductSpiral Wound Gasket
Spiral Wound Gasket Inner Ring

Spiral Wound Gasket Inner Ring

【Technology brief】
Spiral Wound Gasket Inner Ring

【Materia】
SS316

【Size】
 1/2″  to 24″

Description

HGFF Group Co.,Ltd is a Supplier of custom spiral wound gaskets. HGFF engineered spiral wound gaskets are ideal for applications that demand a gasket with the highest-quality flexibility and recovery to maintain a seal even in conditions characterized by fluctuating temperature and pressure.

Composed of a steel centering (outer) ring, a spiral wound sealing strip (filler) and an inner ring made of special steel, spiral wound gaskets are created by winding alternating strips of metal and filler material. Depending on the chemical compatibility requirements, the filler and winding material can be changed.

The spiral wound gasket depends upon the mechanical characteristics of a formed metal spiral strip, rather than the compressive virtues of more traditional gasket materials. This makes it particularly suitable for low or fluctuating bolt loads. The sealing strips, or fillers, are usually graphite, although other materials such as PTFE, Non-Asbestos, ceramic., may be used, the windings are always s/steel

These gaskets are manufactured to International specifications such as ASME, DIN, JIS, BS We also manufacture to customer’s specifications

TECHNICAL DATA

TECHNICAL DATA
max Pressure [psi] ASME B16.5 2500 Class
Minimum initial stress [DIN E 2505 part 2] [N/mm2] 50
Maximum initial stress [DIN E 2505 part 2] [N/mm2] 300
M-Value 3
Y- Value [psi] 10000
Gasket required flange roughness [Ra micron] 3,2-6,3
Gasket required flange roughness [RMS] 125-250
Advice Seating stress at assembly [psi] 12500
ROTT [Gb] 0.341
ROTT [a] 0.341
ROTT [Gs”] 0.341
