ANSI B16.47 Flanges
HOME ProductFlange

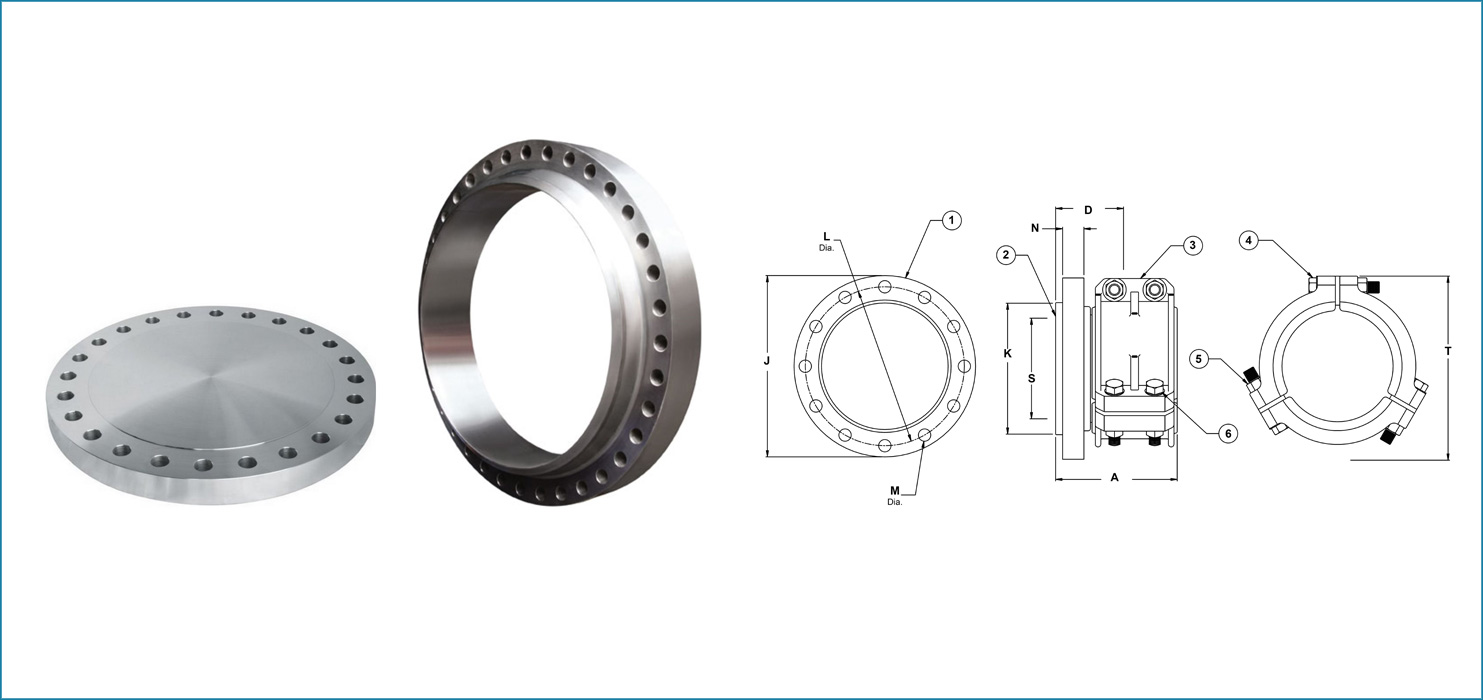

ANSI B16.47 Flanges

ANSI B16.47 Flanges

【Technology brief】

ANSI B16.47 ANSI B16.47 Flanges

【Materia】

ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

【Size】

 1/2″ (15 NB) to 48″ (1200NB)

Consult
Contact

Description

A relentless effort to keep on reinventing and innovating our products and services has made us, HGFF Group Co., Ltd. a leading quality product dispensing company. Our customers are our priority. We are a
manufacturer, supplier and exporter of ANSI B16.47 Flanges, which are large diameter flanges that are further classified into ANSI B16.47 Series A and ANSI B16.47 Series B flanges. ANSI B16.47 Series A flanges are upscale yet thicker, stronger and bulkier in their design than ANSI B16.47 Series B flanges, thus they perform well when equipped under massive pressure loads, with service applications in the load handling equipment and heavy-duty engineering services. We supply SS ANSI B16.47 Flanges in metals like Inconel, Nickel, Hastelloy, Stainless Steel, etc. in covering classes 75, 150,
300, 400, 600, and 900.

Product Structure



Standard Specication For ANSI B16.47 Flanges

Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Material & Grades of ANSI B16.47 Flanges :

Stainless Steel ANSI B16.47 Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel ANSI B16.47 Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel ANSI B16.47 Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel ANSI B16.47 Flanges : ASTM A350, LF2, LF3

Alloy Steel ANSI B16.47 Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel ANSI B16.47 Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C
71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy ANSI B16.47 Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS
No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel
600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No.
N10276), Alloy 20 (UNS No. N08020)

ANSI B16.47 ANSI B16.47 Flanges Available Types

ASME B16.47 Flange ASME B16.47 Series B Class 75 Flanges
ASME B16.47 Series A Class 150 Flange ASME B16.47 Flange Dimensions
ASME B16.47 Series B Class 300 Flanges Flanges as per ASME B16.47
Stainless Steel ASME B16.47 Flanges Flange ASME B16.47 Class 150
Carbon Steel ASME B16.47 Flanges ASME B16.47 Loose Flanges
ASME B16.47 Series A Class 600 Flange ASME B16.47 Flange RF
ANSI B16.47 Class 2500 Flange ASME B16.47 Series A Class 900 Flanges
Carbon Steel ASME B16.47 Flange High Quality ASME B16.47 Series B Flanges
Flange ANSI ASME B16.47 Flange ASME B16.47 Series A Class 75
ASME B16.47 Class 600 Blind Flange Duplex Steel ASME B16.47 Flange
Super Duplex Steel ASME B16.47 Flange Copper Nickel ASME B16.47 Pipe Flanges
High Nickel Alloy ASME B16.47 Flanges Hastelloy ASME B16.47 Flanges
ANSI B16.47 Series A Flanges Inconel ASME B16.47 Series B Flanges

Technical Parameters

ASME B16.47 Series A Class 150 Flange Dimensions

Nominal Size Outside Diameter(OD) Min. Thickness [Note1] – WNF
(tf)		 Min. Thickness [Note1] – Blind
(tf)		 Length Through Hub
(Y)		 Hub Dia. Base [Note2]
(X)		 Hub Dia. Top
(A		 Raised Face Dia.
(R)		 Drilling – Bolt Circle Dia Drilling – No. of Bolt Holes Drilling – Dia. of Bolt Hole Dia. of Bolt Min. Fillet Radius（r1)
26 34.25 2.63 2.63 4.69 26.62 26 29.5 31.75 24 13⁄8 11⁄4 0.38
28 36.5 2.75 2.75 4.88 28.62 28 31.5 34 28 13⁄8 11⁄4 0.44
30 38.75 2.88 2.88 5.32 30.75 30 33.75 36 28 13⁄8 11⁄4 0.44
32 41.75 3.13 3.13 5.63 32.75 32 36 38.5 28 15⁄8 11⁄2 0.44
34 43.75 3.19 3.19 5.82 34.75 34 38 40.5 32 15⁄8 11⁄2 0.5
36 46 3.5 3.5 6.13 36.75 36 40.25 42.75 32 15⁄8 11⁄2 0.5
38 48.75 3.38 3.38 6.13 39 38 42.25 45.25 32 15⁄8 11⁄2 0.5
40 50.75 3.5 3.5 6.38 41 40 44.25 47.25 36 15⁄8 11⁄2 0.5
42 53 3.75 3.75 6.69 43 42 47 49.5 36 15⁄8 11⁄2 0.5
44 55.25 3.94 3.94 6.94 45 44 49 51.75 40 15⁄8 11⁄2 0.5
46 57.25 4 4 7.25 47.12 46 51 53.75 40 15⁄8 11⁄2 0.5
48 59.5 4.19 4.19 7.5 49.12 48 53.5 56 44 15⁄8 11⁄2 0.5
50 61.75 4.32 4.32 7.94 51.25 50 55.5 58.25 44 17⁄8 13⁄4 0.5
52 64 4.5 4.5 8.19 53.25 52 57.5 60.5 44 17⁄8 13⁄4 0.5
54 66.25 4.69 4.69 8.44 55.25 54 59.5 62.75 44 17⁄8 13⁄4 0.5
56 68.75 4.82 4.82 8.94 57.38 56 62 65 48 17⁄8 13⁄4 0.5
58 71 5 5 9.19 59.38 58 64 67.25 48 17⁄8 13⁄4 0.5
60 73 5.13 5.13 9.38 61.38 60 66 69.25 52 17⁄8 13⁄4 0.5

Dimensions are in inches.

1) The minimum flange thickness does not include the raised face thickness
2) This dimension is for the large end of hub, which may be straight or tapered.
3) Weldneck Bore/ID is to be specified by the purchaser
4) For other details and tolerances see specification.

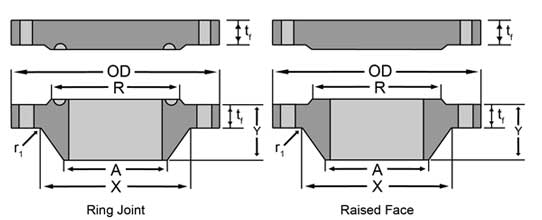

ANSI/ASME B16.47 Series A Class 300 Flange Dimensions

Nominal Size Outside Diameter(OD) Min. Thickness [Note1] – WNF
(tf)		 Min. Thickness [Note1] – Blind
(tf)		 Length Through Hub
(Y)		 Hub Dia. Base [Note2]
(X)		 Hub Dia. Top
(A		 Raised Face Dia.
(R)		 Drilling – Bolt Circle Dia Drilling – No. of Bolt Holes Drilling – Dia. of Bolt Hole Dia. of Bolt Min. Fillet Radius（r1)
26 38.25 3.07 3.25 7.19 28.38 26 29.5 34.5 28 13/4 15/8 0.38
28 40.75 3.32 3.5 7.69 30.5 28 31.5 37 28 13/4 15/8 0.44
30 43 3.57 3.69 8.19 32.56 30 33.75 39.25 28 17/8 13/4 0.44
32 45.25 3.82 3.88 8.69 34.69 32 36 41.5 28 2 17/8 0.44
34 47.5 3.94 4.07 9.07 36.88 34 38 43.5 28 2 17/8 0.5
36 50 4.07 4.32 9.44 39 36 40.25 46 32 21/8 2 0.5
38 46 4.19 4.19 7.06 39.12 38 40.5 43 32 15/8 11/2 0.5
40 48.75 4.44 4.44 7.56 41.25 40 42.75 45.5 32 13/4 15/8 0.5
42 50.75 4.63 4.63 7.82 43.25 42 44.75 47.5 32 13/4 15/8 0.5
44 53.25 4.82 4.82 8.06 45.25 44 47 49.75 32 17/8 13/4 0.5
46 55.75 5 5 8.44 47.38 46 49 52 28 2 17/8 0.5
48 57.75 5.19 5.19 8.75 49.38 48 51.25 54 32 2 17/8 0.5
50 60.25 5.44 5.44 9.07 51.38 50 53.5 56.25 32 21/8 2 0.5
52 62.25 5.63 5.63 9.32 53.38 52 55.5 58.25 32 21/8 2 0.5
54 65.25 5.94 5.94 9.88 55.5 54 57.75 61 28 23/8 21/4 0.5
56 67.25 6 6 10.19 57.62 56 59.75 63 28 23/8 21/4 0.5
58 69.25 6.19 6.19 10.44 59.62 58 62 65 32 23/8 21/4 0.5
60 71.25 6.38 6.38 10.69 61.62 60 64 67 32 23/8 21/4 0.5

ANSI B16.47 Series A Class 400 Flange Dimensions

Nominal Size Outside Diameter(OD) Min. Thickness [Note1] – WNF
(tf)		 Min. Thickness [Note1] – Blind
(tf)		 Length Through Hub
(Y)		 Hub Dia. Base [Note2]
(X)		 Hub Dia. Top
(A		 Raised Face Dia.
(R)		 Drilling – Bolt Circle Dia Drilling – No. of Bolt Holes Drilling – Dia. of Bolt Hole Dia. of Bolt Min. Fillet Radius（r1)
26 38.25 3.5 3.88 7.62 28.62 26 29.5 34.5 28 17/8 13/4 0.44
28 40.75 3.75 4.12 8.12 30.81 28 31.5 37 28 2 17/8 0.5
30 43 4 4.38 8.62 32.94 30 33.75 39.25 28 21/8 2 0.5
32 45.25 4.25 4.56 9.12 35 32 36 41.5 28 21/8 2 0.5
34 47.5 4.38 4.81 9.5 37.19 34 38 43.5 28 21/8 2 0.56
36 50 4.5 5.06 9.88 39.38 36 40.25 46 32 21/8 2 0.56
38 47.5 4.88 4.88 8.12 39.5 38 40.75 44 32 17/8 13/4 0.56
40 50 5.12 5.12 8.5 41.5 40 43 46.25 32 2 17/8 0.56
42 52 5.25 5.25 8.81 43.62 42 45 48.25 32 2 17/8 0.56
44 54.5 5.5 5.5 9.18 45.62 44 47.25 50.5 32 21/8 2 0.56
46 56.75 5.75 5.75 9.62 47.75 46 49.5 52.75 36 21/8 2 0.56
48 59.5 6 6 10.12 49.88 48 51.5 55.25 28 23/8 21/4 0.56
50 61.75 6.19 6.25 10.56 52 50 53.62 57.5 32 23/8 21/4 0.56
52 63.75 6.38 6.44 10.88 54 52 55.62 59.5 32 23/8 21/4 0.56
54 67 6.69 6.75 11.38 56.12 54 57.88 62.25 28 25/8 21/2 0.56
56 69 6.88 6.94 11.75 58.25 56 60.12 64.25 32 25/8 21/2 0.56
58 71 7 7.12 12.06 60.25 58 62.12 66.25 32 25/8 21/2 0.56
60 74.25 7.31 7.44 12.56 62.38 60 64.38 69 32 27/8 23/4 0.56

ANSI B16.47 Series A Class 600 Flange Dimension

Nominal Size Outside Diameter(OD) Min. Thickness [Note1] – WNF
(tf)		 Min. Thickness [Note1] – Blind
(tf)		 Length Through Hub
(Y)		 Hub Dia. Base [Note2]
(X)		 Hub Dia. Top
(A		 Raised Face Dia.
(R)		 Drilling – Bolt Circle Dia Drilling – No. of Bolt Holes Drilling – Dia. of Bolt Hole Dia. of Bolt Min. Fillet Radius（r1)
26 40 4.25 4.94 8.75 29.44 26 29.5 36 28 2 17/8 0.5
28 42.25 4.38 5.19 9.25 31.62 28 31.5 38 28 21/8 2 0.5
30 44.5 4.5 5.5 9.75 33.94 30 33.75 40.25 28 21/8 2 0.5
32 47 4.62 5.81 10.25 36.12 32 36 42.5 28 23/8 21/4 0.5
34 49 4.75 6.06 10.62 38.31 34 38 44.5 28 23/8 21/4 0.56
36 51.75 4.88 6.38 11.12 40.62 36 40.25 47 28 25/8 21/2 0.56
38 50 6 6.12 10 40.25 38 41.5 45.75 28 23/8 21/4 0.56
40 52 6.25 6.38 10.38 42.25 40 43.75 47.75 32 23/8 21/4 0.56
42 55.25 6.62 6.75 11 44.38 42 46 50.5 28 25/8 21/2 0.56
44 57.25 6.81 7 11.38 46.5 44 48.25 52.5 32 25/8 21/2 0.56
46 59.5 7.06 7.31 11.81 48.62 46 50.25 54.75 32 25/8 21/2 0.56
48 62.75 7.44 7.69 12.44 50.75 48 52.5 57.5 32 27/8 23/4 0.56
50 65.75 7.75 8 12.94 52.88 50 54.5 60 28 31/8 3 0.56
52 67.75 8 8.25 13.25 54.88 52 56.5 62 32 31/8 3 0.56
54 70 8.25 8.56 13.75 57 54 58.75 64.25 32 31/8 3 0.56
56 73 8.56 8.88 14.25 59.12 56 60.75 66.75 32 33/8 31/4 0.62
58 75 8.75 9.12 14.56 61.12 58 63 68.75 32 33/8 31/4 0.62
60 78.5 9.19 9.56 15.31 63.38 60 65.25 71.75 28 35/8 31/2 0.69

ASME B16.47 Series A Class 900 Flange Dimensions

Nominal Size Outside Diameter(OD) Min. Thickness [Note1] – WNF
(tf)		 Min. Thickness [Note1] – Blind
(tf)		 Length Through Hub
(Y)		 Hub Dia. Base [Note2]
(X)		 Hub Dia. Top
(A		 Raised Face Dia.
(R)		 Drilling – Bolt Circle Dia Drilling – No. of Bolt Holes Drilling – Dia. of Bolt Hole Dia. of Bolt Min. Fillet Radius（r1)
26 42.75 5.5 6.31 11.25 30.5 26 29.5 37.5 20 27/8 23/4 0.44
28 46 5.62 6.75 11.75 32.75 28 31.5 40.25 20 31/8 3 0.5
30 48.5 5.88 7.18 12.25 35 30 33.75 42.75 20 31/8 3 0.5
32 51.75 6.25 7.62 13 37.25 32 36 45.5 20 33/8 31/4 0.5
34 55 6.5 8.06 13.75 39.62 34 38 48.25 20 35/8 31/2 0.56
36 57.5 6.75 8.44 14.25 41.88 36 40.25 50.75 20 35/8 31/2 0.56
38 57.5 7.5 8.5 13.88 42.25 38 43.25 50.75 20 35/8 31/2 0.75
40 59.5 7.75 8.81 14.31 44.38 40 45.75 52.75 24 35/8 31/2 0.81
42 61.5 8.12 9.12 14.62 46.31 42 47.75 54.75 24 35/8 31/2 0.81
44 64.88 8.44 9.56 15.38 48.62 44 50 57.62 24 37/8 33/4 0.88
46 68.25 8.88 10.06 16.18 50.88 46 52.5 60.5 24 41/8 4 0.88
48 70.25 9.19 10.38 16.5 52.88 48 54.5 62.5 24 41/8 4 0.94



Application



ANSI B16.5 ANSI B16.47 Flanges Application

ANSI B16.47 ANSI B16.47 Flanges are known to deliver exceptional performance and are generally developed for
meeting the demands. We oer a broad range of ANSI B16.47 Flanges through a worldwide network of stockkeeping branches. These ANSI B16.47 Flange is use in various industries like :
Export Destinations For ANSI B16.47 Flanges
 Stainless Steel ANSI B16.47 Flanges uses in Oil and Gas Pipeline
 ANSI B16.47 Flanges uses in Chemical Industry
 Alloy Steel ANSI B16.47 Flanges uses in Plumbing
 ANSI B16.47 Flanges uses in Heating
 ANSI B16.47 Pipe Flanges uses in Water Supply Systems
 ANSI B16.5 ANSI B16.47 ANSI B16.47 Flanges uses in Power Plant
 ANSI B16.47 Flanges uses in Paper & Pulp Industry
 ANSI B16.47 Flange uses in General Purpose Applications
 Steel ANSI B16.47 Flanges uses in Fabrication Industry
 ANSI B16.47 Flange uses in Food Processing Industry
 ANSI B16.47 Flanges uses in Structural Pipe

Export Country



Export Destinations For ANSI B16.47 Flanges



MIDDLE EAST AFRICA NORTH AMERICA EUROPE ASIA SOUTH AMERICA
 Saudi Arabia  Nigeria  Usa  Russia  India  Argentina
 Iran  Algeria  Canada  Norway  Singapore  Bolivia
 Iraq  Angola  Mexico  Germany  Malaysia  Brazil
 Uae  South Africa  Panama  France  Indonesia  Chile
 Qatar  Libya  Costa Rica  Italy  Thailand  Venezuela
 Bahrain  Egypt  Puerto Rica  Uk  Vietnam  Colombia
 Oman  Sudan  Trinidad And Tobago  Spain  South Korea  Ecuador
 Kuwait  Equatorial Guinea  Jamaica  Ukraine  Japan  Guyana
 Turkey  The Republic Of Congo  Bahamas  Netherland  Sri Lanka  Paraguay
 Yemen  Gabon  Denmark  Belgium  Maldives  Uruguay
 Syria      Greece  Bangladesh
 Jordan      Czech Republic  Mayanmar
 Cyprus      Portugal  Taiwan
       Hungary  Cambodia
       Albania
       Austria
       Switzerland
       Slovakia
       Finland
       Ireland
       Croatia
       Slovenia
       Malta

Related products

ASME B16.5 Flanges
View more

ASME B16.5 Flanges

Reducing Flanges
View more

Reducing Flanges

Male & Female Flanges
View more

Male & Female Flanges

Tongue & Groove Flanges
View more

Tongue & Groove Flanges

Raised Face Flanges
View more

Raised Face Flanges

Ring Type Joint Flanges (RTJ)
View more

Ring Type Joint Flanges (RTJ)

Forged Flanges
View more

Forged Flanges

Plate Flanges
View more

Plate Flanges

HGFF

PRODUCT TYPE

Our News Read More »

CHINA IMPORT AND EXPORT FAIR

CHINA IMPORT AND EXPORT FAIR

2019-06-25
China Import and Export Fair

China Import and Export Fair

2019-06-25

VideoRead More »

HGFF GROUP CO.,LTD

MESSAGE

We ask the service staff to always think about the customers, solve the problems of the equipment in time, and make sure that the interests of customers are above everything else.

WhatsApp chat
