Long Stub End
HOME ProductButted Weld Fittings
Long Stub End

Long Stub End

【Technology brief】

Long Stub End

【Materia】

ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

【Size】

1/2″NB TO 36 “NB IN



Description

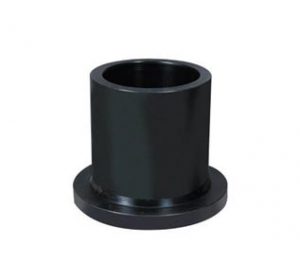

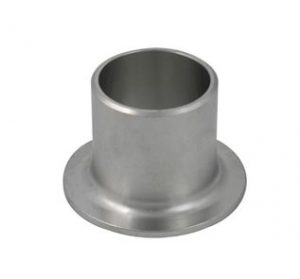

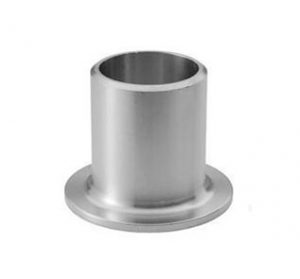

          ASME B16.9 Long Stub End                     Stainless Steel Long Stub End                     Carbon Steel Long Stub End

Searching for a company that can offer you a collection of the best-in-class products and services all under one roof?

Look no further. We, HGFF GROUP Co., Ltd. extends a product line that is impeccable and unique with a complete customer satisfaction experience. We are manufacturers, suppliers and exporters of Long Stub Ends, which are the opposite of Short Stub Ends. They have a longer hub length.

These stub ends come in different types to administer convenient and conducive joinings at pipe connections. Stainless Steel Long Stub Ends are inexpensive and commonly used within the ranging industry. Choose us for ANSI B16.9 Long Stub Ends that operate in low-pressure, trivial industrial applications

Product Structure

Standard Specication For Buttweld Long Stub End

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″NB TO 36 “NB IN
Type : Seamless / ERW / Welded / Fabricated
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and
etc.
Form : Long Stub Ends, Pipe Stub Ends, Butt weld Long Stub Ends.

Material & Grades of Buttweld Long Stub End :

Stainless Steel Buttweld Long Stub End :
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN
1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Duplex & Super Duplex Steel Buttweld Long Stub End :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werksto No. 1.4462

Carbon Steel Buttweld Long Stub End :
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Buttweld Long Stub End : ASTM A420 WPL3, A420 WPL6

Alloy Steel Buttweld Long Stub End :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Buttweld Long Stub End :
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No.
N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel
600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No.
N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.



ASME B16.9 Buttweld Long Stub End Available Types



Buttweld Long Stub End  Butt Weld Long Stub Ends
ASME B16.9 Butt weld Long Stub End  Steel Long Stub Ends Fittings
Stainless Steel Long Stub End Suppliers  SS Buttweld Long Stub Ends Fitting
ANSI B16.9 Buttweld Long Stub End Dealer  ASME B16.28 Buttweld Long Stub Ends Exporter
Welded Butt weld Long Stub Ends Stockholder  Seamless Butt weld Long Stub End Distributors
Carbon Steel Long Stub End  High Quality Long Stub End Manufacturer
ASTM A403 Stainless Steel Long Stub Ends  Duplex Steel Buttweld Long Stub End
Super Duplex Steel Buttweld Long Stub End  Copper Nickel Long Stub End
High Nickel Alloy Long Stub Ends  Hastelloy Long Stub Ends Stockist
Titanium Buttweld Long Stub End  Inconel Butt weld Long Stub End

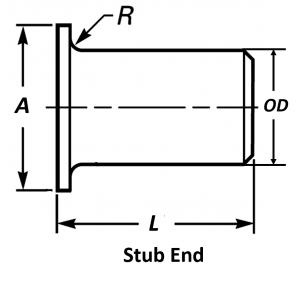

Technical Parameters

ASME B16.9 Long Stub End

NOMINAL PIPE SIZE LAP DIAMETER OUTSIDE DIAMETER LONG PATTERN LENGTH SHORT PATTERN LENGTH RADIUS
Inch. A OD Min OD Max L L R
1/2 35 22.8 20.5 76 51 3
3/4 43 28.1 25.9 76 51 3
1 51 35 32.6 102 51 3
1 1/4 64 43.6 41.4 102 51 5
1 1/2 73 49.9 47.5 102 51 6
2 92 62.4 59.5 152 64 8
2 1/2 105 75.3 72.2 152 64 8
3 127 91.3 88.1 152 64 10
3 1/2 140 104 100.8 152 76 10
4 157 116.7 113.5 152 76 11
5 186 144.3 140.5 203 76 11
6 216 171.3 167.5 203 89 13
8 270 222.1 218.3 203 102 13
10 324 277.2 272.3 254 127 13
12 381 328 323.1 254 152 13
14 413 359.9 354.8 305 152 13
16 470 411 405.6 305 152 13
18 533 462 456 305 152 13
20 584 514 507 305 152 13
22 641 565 558 305 152 13
24 692 616 609 305 152 13
  All Dimensions are in mm
