Socket Weld 90 Deg Elbow
HOME ProductForged Fittings
Socket Weld 90 Deg Elbow

Socket Weld 90 Deg Elbow

【Technology brief】

ASME B16.11 Forged Socket Weld 90 Deg Elbow

【Materia】

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,
API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

【Size】

 1/8″ NB TO 4″ NB

Description

HGFF Group Co., Ltd. provides a variety of products to its customers, especially Socket Weld 90° Elbows. They are offered to clients with the option of customizing the size as per the individual purchasers. Socket Weld is pipe attachment detail in which a pipe is inserted into the recessed area of a valve, fitting or flange. Stainless Steel Socket Weld 90° Elbows make 90° changes of direction in the run of the pipe. These ANSI B16.11 Forged Socket Weld 90° Elbows come in two
types; short radius elbow and long radius elbow. These fittings add pressure losses to the system due to impact, re-acceleration and friction. As an ISO certified company, HGFF Group Co., Ltd is one of the top manufacturers and stockists of ASME B16.11 Socket
Weld 90° Elbows. It is also made available to clients in customized sizes.

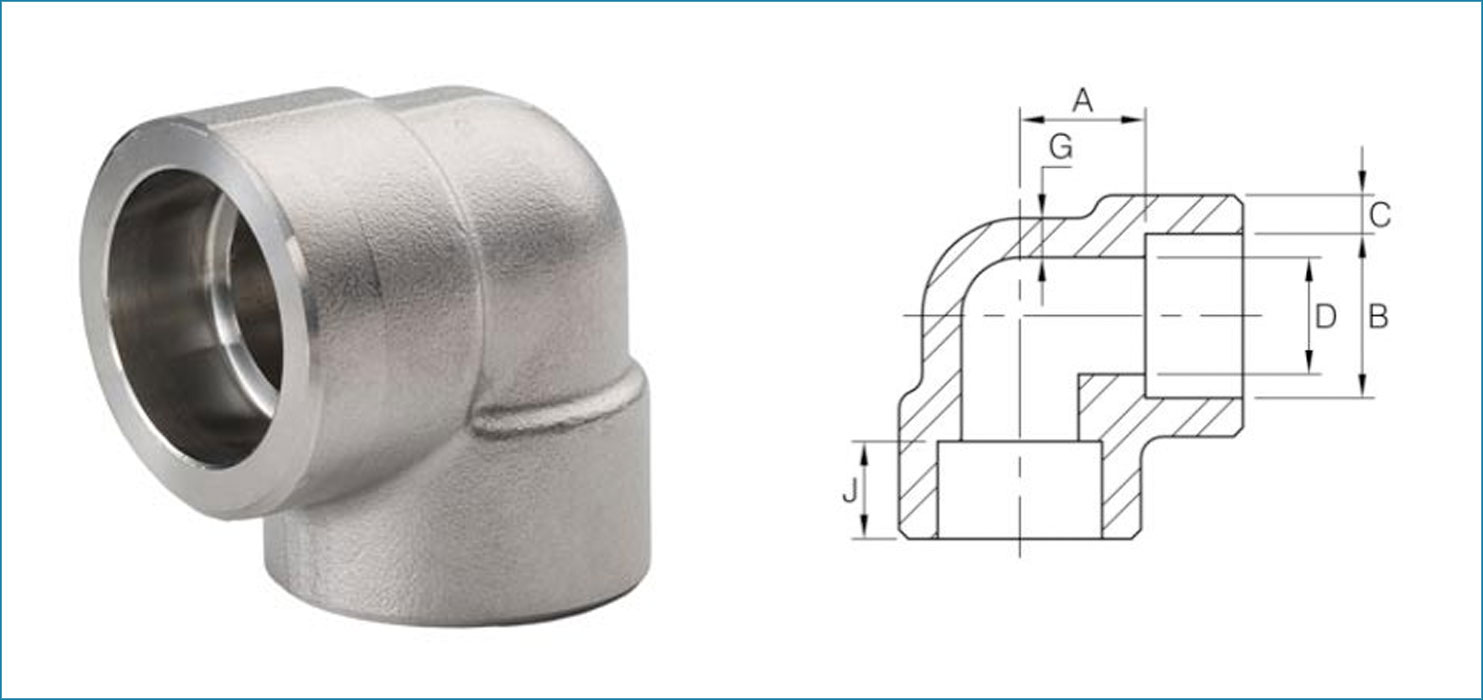

Product Structure



Standard Specication For Forged Socket Weld 90 Deg Elbow

Dimensions : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size : 1/8″ NB TO 4″ NB
Pressure Class : 3000 LBS, 6000 LBS, 9000 LBS
Form : Forged Elbow, 90 Deg Elbow.

Material & Grades of Forged Socket Weld 90 Deg Elbow :

Stainless Steel Forged Socket Weld 90 Deg Elbow :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L,
F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel Forged Socket Weld 90 Deg Elbow :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel Forged Socket Weld 90 Deg Elbow :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,
API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel Forged Socket Weld 90 Deg Elbow :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM /
ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Copper Alloy Steel Forged Socket Weld 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C
71500 ( CU -NI- 70/30)

Nickel Alloy Forged Socket Weld 90 Deg Elbow :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) ,
UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) ,
UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

ASME B16.11 Forged Socket Weld 90 Deg Elbow Available Types

Forged Socket weld Elbow 90 Degree Forged Socket weld Long Radius 90 Degree Elbows
150 lb. Socket Weld Fittings Pipe Elbow Socket weld 90° Short Radius Elbow
ASME B16.11 90 deg Socket weld Elbow 90 Degree Elbow 3000LB Socket Weld
Socket Weld Fittings 90 Degree Pipe Elbow Long Radius Socket Weld 90 Deg. Forged Elbows
ANSI B16.11 90 Degree Forged Elbow BS 3799 Forged 90 Degree Elbow
Forged Socket weld 90 Deg Elbow Socket weld 90° Pipe Elbow
Socket weld 90deg. Elbow High Quality Socket weld 90° Elbow
90° Socket Weld Elbow Socket Weld 90 elbow

Technical Parameters

ANSI/ASME B16.11 SOCKET WELD 90 DEGREE ELBOW DIMENSIONS

NPS 1/2 to 4 – 90°/45° Class 3000 Socket Weld 90 Degree Elbow Dimensions

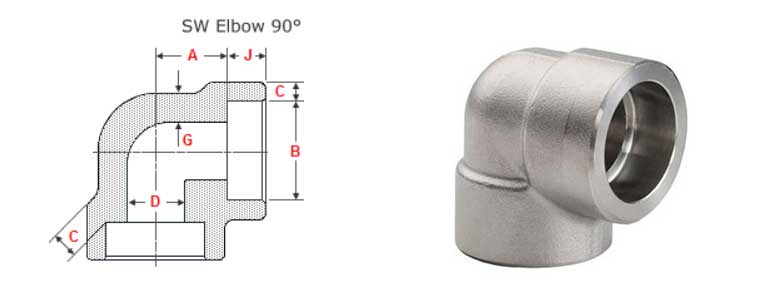

Socket Weld 90 Degree Elbow Drawing
NPS Socket
Bore
Depth
Socket
Bore
DIA
Socket
WT
Body
WT
B J D C G
1/2 21.95
21.70
10 16.6
15
4.65
4.10
3.75
3/4 27.30
27.05
13 21.7
20.2
4.90
4.25
3.90
1 34.05
33.80
13 27.4
25.9
5.70
5.00
4.55
1.1/4 42.80
42.55
13 35.8
34.3
6.05
5.30
4.85
1.1/2 48.90
48.65
13 41.7
40.1
6.35
5.55
5.10
2 61.35
61.10
16 53.5
51.7
6.95
6.05
5.55
2.1/2 74.20
73.80
16 64.2
61.2
8.75
7.65
7.00
3 90.15
89.80
16 79.5
46.4
9.50
8.30
7.60
4 115.80
115.45
19 103.8
100.7
10.70
9.35

8.55

Class 6000 Socket Weld 90° Elbow Dimensions NPS 1/2 to 2

NPS Socket
Bore
Depth
Socket
Bore
DIA
Socket
WT
Body
WT
B J D C G
1/2 21.95
21.70
10 12.5
11
5.95
5.20
4.80
3/4 27.30
27.05
13 16.3
14.8
6.95
6.05
5.55
1 34.05
33.80
13 21.5
19.9
7.90
6.95
6.35
1.1/4 42.80
42.55
13 30.2
28.7
7.90
6.95
6.35
1.1/2 48.90
48.65
13 34.7
33.2
8.90
7.80
7.15
2 61.35
61.10
16 43.6
42.1
10.90
9.50
8.75

General notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Socket Bore (B) – Maximum and minimum dimensions.
  • Bore Diameter (D) – Maximum and minimum dimensions.
  • Socket wall thickness – (C) – Average of Socket wall thickness.
  • Dimensional tolerances center to bottom of socket – (A)
    NPS 1/2 and NPS 3/4 = +/- 1.5 mm
    NPS 1 to NPS 2 = +/- 2 mm
    NPS 2.1/2 to NPS 4 = +/- 2.5 mm



Application

Forged Socket Weld 90 Deg Elbow Application
ASME B16.11 90 Degree Socket weld Elbow are known to deliver exceptional performance and are generally
developed for meeting the demands. We oer a broad range of Forged 90 Degree Socket weld Elbow through a
worldwide network of stock-keeping branches. These 90Deg. Socket weld Elbow is use in various industries like :
 Stainless Steel 90° Forged Elbow uses in Oil and Gas Pipeline
 90° Forged Pipe Elbow uses in Chemical Industry
 Alloy Steel 90° Elbow uses in Plumbing
 Forged 90 Degree Pipe Elbow uses in Heating
 90 Degree Forged Elbow uses in Water Supply Systems
 ANSI B16.9 Forged 90° Pipe Elbow uses in Power Plant
 90° Elbow uses in Paper & Pulp Industry
 90° Degree Elbow uses in General Purpose Applications
 Forged 90° Long Radius Elbow uses in Fabrication Industry
 90° Forged Elbow uses in Food Processing Industry
 Forged 90° Short Radius Elbow uses in Structural Pipe
