BS 10 Flanges
HOME ProductFlange
BS 10 Flanges

BS 10 Flanges

【Technology brief】

ANSI B16.5 BS 10 Flanges

【Materia】

ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

【Size】

 1/2″ (15 NB) to 48″ (1200NB)

Description

HGFF GROUP Co., Ltd. is an ISO ISO 9001:2000 company that aims to create sustainable products through adopting the strategy to use precise resources and applications to create products, high in quality and features. We are a manufacturer, supplier and exporter of BS 10 Flanges, with the BS indicating the British Standard. We offer BS 10 Table E Flanges and BS 10 Table E Flanges that have precise
dimensional accuracy and a defect-free finish. Our BS 10 Table F flanges are supplied threaded as well(BSP to
BS21) and are treated with a special, anti-corrosive coating to keep them away from corrosive elements and rust. Our BS 10 Table D Flanges are compatible to use when the industrial applications are lightweight and when corrosion resistance is a priority

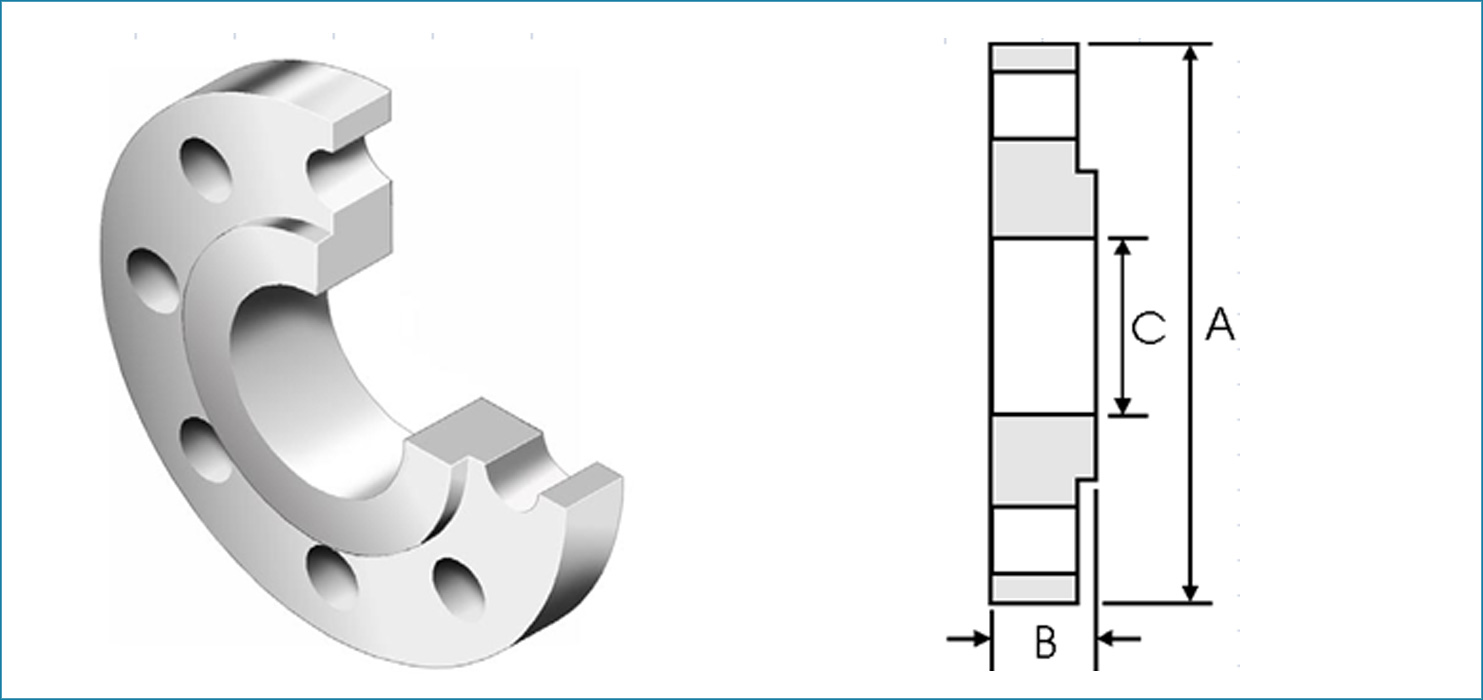

Product Structure



Standard Specication For BS 10 Flanges

Dimensions : ANSI B16.5, BS 10 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Material & Grades of BS 10 Flanges :

Stainless Steel BS 10 Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel BS 10 Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel BS 10 Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low-Temperature Carbon Steel BS 10 Flanges: ASTM A350, LF2, LF3

Alloy Steel BS 10 Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel BS 10 Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500
(Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy BS 10 Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS
No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel
600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No.
N10276), Alloy 20 (UNS No. N08020)

BS 10 Flanges Available Types

BS 10 Flange BS 10 Table Flanges
BS 10 Table D Flanges BS 10 Flange Dimensions
BS 10 Table E Flanges BS 10 Table H Flanges
Stainless Steel BS 10 Flanges SS BS 10 Flange
Carbon Steel BS 10 Flanges BS 10 Table D Weld Neck Flanges
BS 10 Table F Plate Flange BS 10 Table E Threaded Flanges
Carbon Steel BS 10 Flange High Quality BS 10 Flanges
BS 10 Table D Blind Flange Duplex Steel BS 10 Flange
Super Duplex Steel BS 10 Flange Copper Nickel BS 10 Pipe Flanges
High Nickel Alloy BS 10 Flanges Hastelloy BS 10 Flanges
BS 10 Table E Slip On Flanges Inconel BS 10 Flanges

Technical Parameters

BS 10 Table D Flange Dimensions

Nominal O.D of Dia. of Dia. of No. of Dia. of Thickness
Pipe size Pipe Flange Bolt Circle Bolt Bolt
1/2″ 21.3 95.3 66.7 4 12.7 4.8
3/4″ 26.7 101.6 73 4 12.7 4.8
1″ 33.4 114.3 82.6 4 12.7 4.8
1 1/4″ 42.2 120.7 87.6 4 12.7 6.4
1 1/2″ 48.3 133.4 98.4 4 12.7 6.4
2″ 60.3 152.4 114.3 4 15.9 7.9
2 1/2″ 73 165.1 127 4 15.9 7.9
3″ 88.9 184.2 146.1 4 15.9 9.5
3 1/2″ 101.6 203.2 165.1 4 15.9 9.5
4″ 114.3 215.9 177.8 4 15.9 9.5
5″ 141.3 254 209.6 8 15.9 12.7
6″ 168.3 279.4 228.6 8 15.9 12.7
7″ 190.5 304.8 260.4 8 15.9 12.7
8″ 219.1 336.6 292.1 8 15.9 12.7
9″ 244.5 368.3 323.9 8 15.9 15.9
10″ 273 406.4 355.6 8 19.1 15.9
12″ 323.9 457.2 406.4 12 19.1 15.9
14″ 355.6 527.1 469.9 12 22.2 19.1
16″ 406.4 577.9 520.7 12 22.2 19.1
18″ 457.2 641.4 584.2 12 22.2 22.2
20″ 508 704.9 641.4 16 22.5 25.4
24″ 609.6 825.5 755.7 16 25.4 28.6

BS 10 Flanges Sizes, BS 10 Flanges Dimensions in mm

NOMINAL BORE
15
FLANGE DIAMETERin mm
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS

Table D

3 3/4″ / 95

2 5/8″ / 67

4

1/2″

9/16″ / 14

3/8″ / 10

Table E

3 3/4″ / 95

2 5/8″ / 67

4

1/2″

9/16″ / 14

3/8″ / 10

Table F

3 3/4″ / 95

2 5/8″ / 67

4

1/2″

9/16″ / 14

3/8″ / 10

Table H

4 1/2″ / 114

3 1/4″ / 83

4

5/8″

11/16″ / 17

1/2″ / 13

Table J

4 1/2″ / 114

3 1/4″ / 83

4

5/8″

11/16″ / 17

5/8″ / 16

Table K

4 1/2″ / 114

3 1/4″ / 83

4

5/8″

11/16″ / 17

3/4″ / 19

NOMINAL BORE
20
FLANGE DIAMETERin mm
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS

Table D

4″ / 102″

2 7/8″ / 73″

4

1/2″

9/16″ / 14″

3/8″ / 10″

Table E

4″ / 102″

2 7/8″ / 73″

4

1/2″

9/16″ / 14″

3/8″ / 10″

Table F

4″ / 102″

2 7/8″ / 73″

4

1/2″

9/16″ / 14″

3/8″ / 10″

Table H

4 1/2″ / 114″

3 1/4″ / 83″

4

5/8″

11/16″ / 17″

1/2″ / 13″

Table J

4 1/2″ / 114″

3 1/4″ / 83″

4

5/8″

11/16″ / 17″

5/8″ / 16″

Table K

4 1/2″ / 114″

3 1/4″ / 83″

4

5/8″

11/16″ / 17″

3/4″ / 19″

NOMINAL BORE
25
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS

Table D

4 1/2″ / 114

3 1/4″ / 83

4

1/2″

9/16″ / 14

3/8″ / 10

Table E

4 1/2″ / 114

3 1/4″ / 83

4

1/2″

9/16″ / 14

3/8″ / 10

Table F

4 3/4″ / 121

3 7/16″ / 87

4

5/8″

9/16″ / 14

3/8″ / 10

Table H

4 3/4″ / 121

3 7/16″ / 87

4

5/8″

11/16″ / 17

9/16″ / 14

Table J

4 3/4″ / 121

3 7/16″ / 87

4

5/8″

11/16″ / 17

3/4″ / 19

Table K

5″ / 127

3 3/4″ / 95

4

5/8″

11/16″ / 17

7/8″ / 22

NOMINAL BORE
32
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS

Table D

4 3/4″ / 121

3 7/16″ / 87

4

1/2″

9/16″ / 14

1/2″ / 13

Table E

4 3/4″ / 121

3 7/16″ / 87

4

1/2″

9/16″ / 14

1/2″ / 13

Table F

5 1/4″ / 133

3 7/8″ / 98

4

5/8″

11/16″ / 17

1/2″ / 13

Table H

5 1/4″ / 133

3 7/8″ / 98

4

5/8″

11/16″ / 17

11/16″ / 17

Table J

5 1/4″ / 133

3 7/8″ / 98

4

5/8″

11/16″ / 17

3/4″ / 19

Table K

5 1/4″ / 133

3 7/8″ / 98

4

5/8″

11/16″ / 17

7/8″ / 22

NOMINAL BORE
40
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS

Table D

5 1/4″ / 133

3 7/8″ / 98

4

1/2″

9/16″ / 14

1/2″ / 13

Table E

5 1/4″ / 133

3 7/8″ / 98

4

1/2″

9/16″ / 14

1/2″ / 13

Table F

5 1/2″ / 140

4 1/8″ / 105

4

5/8″

11/16″ / 17

1/2″ / 13

Table H

5 1/2″ / 140

4 1/8″ / 105

4

5/8″

11/16″ / 17

11/16″ / 17

Table J

5 1/2″ / 140

4 1/8″ / 105

4

5/8″

11/16″ / 17

7/8″ / 22

Table K

6″ / 152

4 1/2″ / 114

4

3/4″

7/8″ / 22

1″ / 25

NOMINAL BORE
50
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS

Table D

6″ / 152

4 1/2″ / 114

4

5/8″

11/16″ / 17

9/16″ / 14

Table E

6″ / 152

4 1/2″ / 114

4

5/8″

11/16″ / 17

9/16″ / 14

Table F

6 1/2″ / 165

5″ / 127

4

5/8″

11/16″ / 17

5/8″ / 16

Table H

6 1/2″ / 165

5″ / 127

4

5/8″

11/16″ / 17

3/4″ / 19

Table J

6 1/2″ / 165

5″ / 127

4

3/4″

7/8″ / 22

1″ / 25

Table K

6 1/2″ / 165

5″ / 127

8

5/8″

11/16″ / 17

1″ / 25

NOMINAL BORE
65
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS

Table D

6 1/2″ / 165

5″ / 127

4

5/8″

11/16″ / 17

9/16″ / 14

Table E

6 1/2″ / 165

5″ / 127

4

5/8″

11/16″ / 17

9/16″ / 14

Table F

7 1/4″ / 184

5 3/4″ / 146

8

5/8″

11/16″ / 17

5/8″ / 16

Table H

7 1/4″ / 184

5 3/4″ / 146

8

5/8″

11/16″ / 17

3/4″ / 19

Table J

7 1/4″ / 184

5 3/4″ / 146

8

3/4″

7/8″ / 22

1″ / 25

Table K

7 1/4″ / 184

5 3/4″ / 146

8

3/4″

7/8″ / 22

1 1/8″ / 29

NOMINAL BORE
80
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS

Table D

8 1/2″ / 216

7″ / 178

4

5/8″

11/16″ / 17

11/16″ / 17

Table E

8 1/2″ / 216

7″ / 178

8

5/8″

11/16″ / 17

11/16″ / 17

Table F

9″ / 229

7 1/2″ / 191

8

5/8″

11/16″ / 17

3/4″ / 19

Table H

9″ / 229

7 1/2″ / 191

8

5/8″

11/16″ / 17

1″ / 25

Table J

9″ / 229

7 1/2″ / 191

8

3/4″

7/8″ / 22

1 3/8″ / 35

Table K

9 1/2″ / 241

7 3/4″ / 197

8

7/8″

1″ / 25

1 3/8″ / 35

NOMINAL BORE
100
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS

Table D

8 1/2″ / 216

7″ / 178

4

5/8″

11/16″ / 17

11/16″ / 17

Table E

8 1/2″ / 216

7″ / 178

8

5/8″

11/16″ / 17

11/16″ / 17

Table F

9″ / 229

7 1/2″ / 191

8

5/8″

11/16″ / 17

3/4″ / 19

Table H

9″ / 229

7 1/2″ / 191

8

5/8″

11/16″ / 17

1″ / 25

Table J

9″ / 229

7 1/2″ / 191

8

3/4″

7/8″ / 22

1 3/8″ / 35

Table K

9 1/2″ / 241

7 3/4″ / 197

8

7/8″

1″ / 25

1 3/8″ / 35

Application



ANSI B16.5 BS 10 Flanges Application

BS 10 BS 10 Flanges are known to deliver exceptional performance and are generally developed for meeting the
demands. We oer a broad range of BS 10 Flanges through a worldwide network of stock-keeping branches.
These BS 10 Flange is use in various industries like :
 Stainless Steel BS 10 Flanges uses in Oil and Gas Pipeline
 BS 10 Flanges uses in Chemical Industry
 Alloy Steel BS 10 Flanges uses in Plumbing
 BS 10 Flanges uses in Heating
 BS 10 Pipe Flanges uses in Water Supply Systems
 ANSI B16.5 BS 10 BS 10 Flanges uses in Power Plant
 BS 10 Flanges uses in Paper & Pulp Industry
 BS 10 Flange uses in General Purpose Applications
 Steel BS 10 Flanges uses in Fabrication Industry
 BS 10 Flange uses in Food Processing Industry
 BS 10 Flanges uses in Structural Pipe
