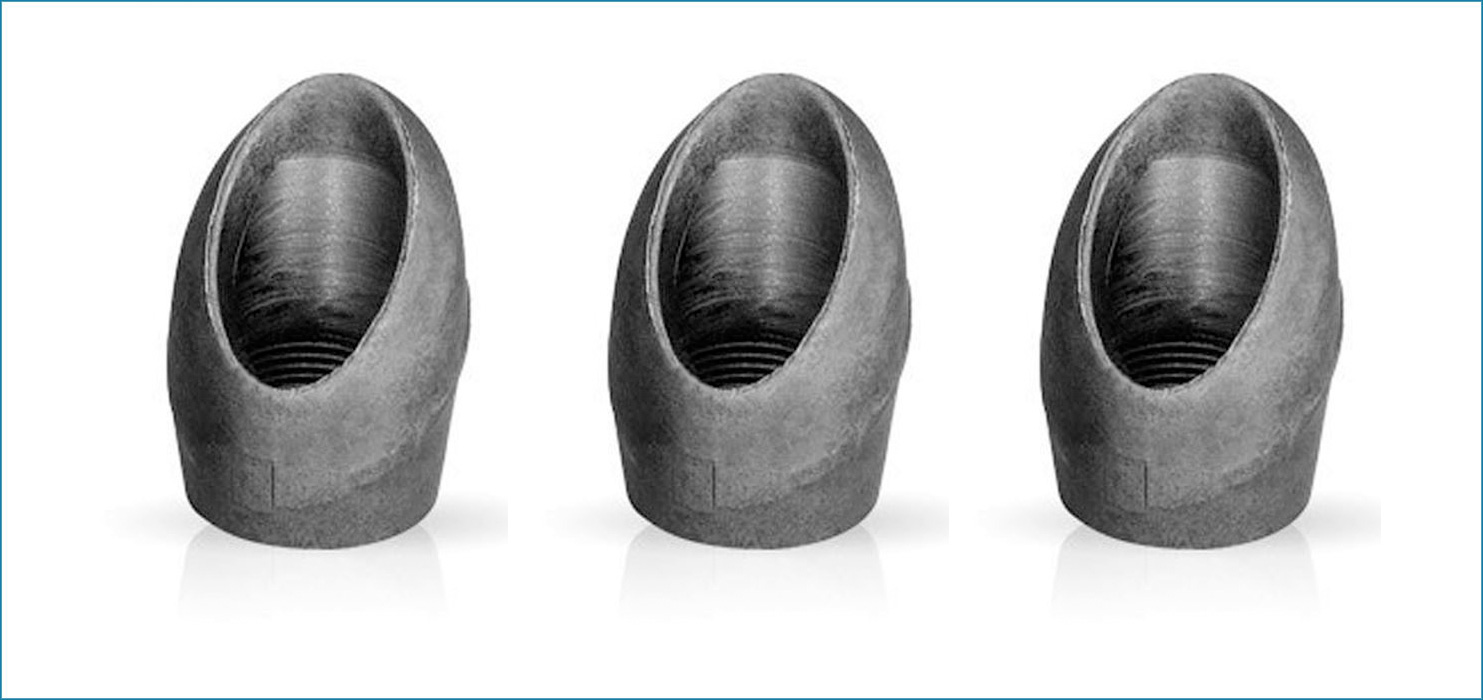

ASME B16.11 SS Elbow Outlets

【Materia】

ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

【Size】

 1/2″  to 24″

Description

HGFF Group Co., Ltd Is One Of The Largest Manufacturer Of Elbolet in China. SS ASME B16.11 Elbolet has excellent resistance to chloride-ion stress-corrosion cracking, and as well shows appropriate resistance to a number of oxidizing environments. ANSI B16.11 Elbolet is very much resistant to chemical corrosion and oxidation (corrosion resistant) and has some high stress-rupture effectiveness and low creep rates under high stresses at temperatures after suitable heat treatment. Our ASTM A182 Elbolet is accessible to our valuable customers in a different range of diameters (d), wall thicknesses (w) and sizes (nom. Pipe Size) in customized form (as per customer requirement or order) and also at quite affordable rates (Best Price In India). Meanwhile, we offer different types of these fitting such as [We Manufacture And Supply Elbolet In Other Materials Like :] Stainless Steel 304 Elbolet, Inconel 625 Elbolet, Carbon Steel Elbolet, Alloy Steel Elbolet, etc.

Specification



Standard Specication For Elbow Outlets

Dimensions : ASME 16.11, MSS SP-97, BS 3799
Size : 1/2″ to 24″
Pressure Class : 3000 LBS, 6000 LBS, 9000 LBS
Form : Elbow Outlet Outlets, Elbow Outlets.

Material & Grades of Elbow Outlets :

Stainless Steel Elbow Outlet :
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L.

Duplex & Super Duplex Steel Elbow Outlet :
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

Carbon Steel Elbow Outlet :
ASTMA 105 / A694 / Gr. F42 / 46 / 52 / 56 / 60 / 65 / 70.

Low Temperature Carbon Steel Elbow Outlet :
A350 LF3 / A350 LF2.

Alloy Steel Elbow Outlet :
ASTM / ASME A / SA 182 F1 / F5 / F9 / F11 / F22 / F91.

Nickel Alloy Elbow Outlet :
ASTM / ASME SB 564 / 160 / 472 – UNS 10276 (HASTELLOY C276), UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201),
UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600), UNS 6601
(INCONEL 601), UNS 6625 (INCONEL 625).

Copper Nickel Elbow Outlet :
ASTM / ASME SB 61 / 62 / 151 / 152 – C70600 (CU-NI-90/10 Cupro Nickel Outlets), C71500 (CU-NI-70/30 Copper
Nickel Outlets).

ASME B16.11 SS Elbow Outlets Available Types

Steel Elbow Outlets  SS 304 Elbow Outlets
ASME B16.11 Elbow Outlets  SS 310 Elbow Outlets
Stainless Steel Elbow Outlets Suppliers  ASTM A105 CS Elbow Outlets
ANSI B16.11 Elbow Outlets Dealer  ASME B16.11 Elbow Outlets Exporter
Elbow Outlets Stockholder  ASME B16.11 / BS3799 Elbow Outlets Distributors
Carbon Steel Elbow Outlet  High Quality Elbow Outlet Manufacturer
ASTM A182 Stainless Steel Elbow Outlets  Duplex Steel Elbow Outlets
Super Duplex Elbow Outlet  Copper Nickel Elbow Outlets
High Nickel Alloy Elbow Outlet  Hastelloy Elbow Outlets Stockist

Technical Parameters

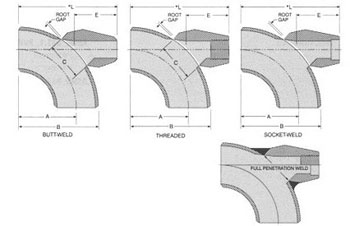

Elbolet Dimensions :

Olets Branch Connection – Elbolet Dimensions

Nominal
Elbow Size
Inches
Outlet Size
Inches
Dimensions
CL 3000 Threaded &
Socket Weld Std. & XS Butt-Weld
CL 6000 Threaded &
Socket Socket-Weld Sch. 160 & XXS Butt-Weld
C E C E
36 – 3/4 1/4 1 1/2 1 19/32 1 1/2 1 19/32
36 – 3/4 3/8 1 1/2 1 19/32 1 1/2 1 19/32
36 – 3/4 1/2 1 1/2 1 19/32 1 23/32 1 7/8
36 – 1 3/4 1 23/32 1 7/8 2 1/4 2 1/4
36 – 2 1 2 1/4 2 1/4 2 7/8 2 1/2
36 – 2 1 1/4 2 7/8 2 1/2 3 1/8 2 11/16
36 – 2 1 1/2 3 1/8 2 11/16 4 3/16 3 1/4
36 – 3 2 4 3/16 3 1/4
  **2 1/2 4 3/16 3 1/4
  **3 5 1/16 3 7/8
Order to Specific **4 6 5/8 4 13/16
Elbow Sizes **6 9 3/8 6 1/2 ** **
  **8 13 5/16 8 1/16
  **10 17 1/32 10 3/8
  **12 19 5/8 11 1/8

Material

ASME B16.9 Elbolet Available In Different Materials :

  •   SCH60 ASME B16.11 Elbolet
  •   SCH XS ASME B16.11 Elbolet
  •   SCH80. ASME B16.11 Elbolet
  •   DIN 2605 ASME B16.11 Elbolet
  •   DIN 2609 ASME B16.11 Elbolet
  •   DIN 2617 ASME B16.11 Elbolet
  •   321H Stainless ASME B16.11 Elbolet
  •   A234 AISI 4130 High Strength Low Alloyed ASME B16.11 Elbolet
  •   201 Stainless ASME B16.11 Elbolet
  •   202 Stainless ASME B16.11 Elbolet
  •   304 Stainless ASME B16.11 Elbolet
  •   304L Stainless ASME B16.11 Elbolet
  •   DIN 1.4961 ASME B16.11 Elbolet
  •   DIN 1.4840 ASME B16.11 Elbolet
  •   DIN 1.4890 ASME B16.11 Elbolet
  •   DIN 1.4449 ASME B16.11 Elbolet
  •   DIN 1.4438 ASME B16.11 Elbolet
  •   DIN 1.4841 ASME B16.11 Elbolet
  •   316TI Stainless ASME B16.11 Elbolet
  •   316H Stainless ASME B16.11 Elbolet
  •   316L Stainless ASME B16.11 Elbolet
  •   316LN Stainless ASME B16.11 Elbolet
  •   317 Stainless ASME B16.11 Elbolet
  •   317L Stainless ASME B16.11 Elbolet
  •   321 Stainless ASME B16.11 Elbolet
  •   ASTM A234 Alloy ASME B16.11 Elbolet



  •   DIN 1.4550 ASME B16.11 Elbolet
  •   DIN 1.4006 ASME B16.11 Elbolet
  •   DIN 1.4005 ASME B16.11 Elbolet
  •   Duplex Stainless ASME B16.11 Elbolet
  •   DIN 1.4021 ASME B16.11 Elbolet
  •   DIN 1.4016 ASME B16.11 Elbolet
  •   UNS S31635 ASME B16.11 Elbolet
  •   UNS S32100 ASME B16.11 Elbolet
  •   304H Stainless ASME B16.11 Elbolet
  •   309S Stainless ASME B16.11 Elbolet
  •   310S Stainless ASME B16.11 Elbolet
  •   DIN 1.4980 ASME B16.11 Elbolet
  •   ASTM A234 WP91 ASME B16.11 Elbolet
  •   EN 10253-3 ASME B16.11 Elbolet
  •   310H Stainless ASME B16.11 Elbolet
  •   SCH120 ASME B16.11 Elbolet
  •   ASTM A860 WPHY 52 ASME B16.11 Elbolet
  •   UNS S20910 ASME B16.11 Elbolet
  •   UNS S21800 ASME B16.11 Elbolet
  •   EN 10253-1 ASME B16.11 Elbolet
  •   EN 10253-2 ASME B16.11 Elbolet
  •   SCH XXS ASME B16.11 Elbolet
  •   347H Stainless ASME B16.11 Elbolet
  •   904L Stainless ASME B16.11 Elbolet
  •   347 Stainless ASME B16.11 Elbolet
  •   ASTM A234 ASME B16.11 Elbolet
  •   Super Duplex ASME B16.11 Elbolet
  •   DIN 1.9034 ASME B16.11 Elbolet
  •   ASTM A234 WP9 ASME B16.11 Elbolet
  •   316 Stainless ASME B16.11 Elbolet
  •   UNS S13800 ASME B16.11 Elbolet
  •   UNS S66286 ASME B16.11 Elbolet
  •   SCH140 ASME B16.11 Elbolet
  •   SCH160 ASME B16.11 Elbolet
  •   DIN 2615 ASME B16.11 Elbolet
  •   DIN 2616 ASME B16.11 Elbolet
  •   SCH100 ASME B16.11 Elbolet
  •   ASTM A860 WPHY 60 ASME B16.11 Elbolet
  •   ASTM A860 WPHY 56 ASME B16.11 Elbolet
  •   UNS S43020 ASME B16.11 Elbolet
  •   UNS S66286 ASME B16.11 Elbolet
  •   UNS S43100 ASME B16.11 Elbolet
  •   UNS S44004 ASME B16.11 Elbolet
  •   ASTM A860 WPHY 65 ASME B16.11 Elbolet
  •   ASTM A860 WPHY 70 ASME B16.11 Elbolet
