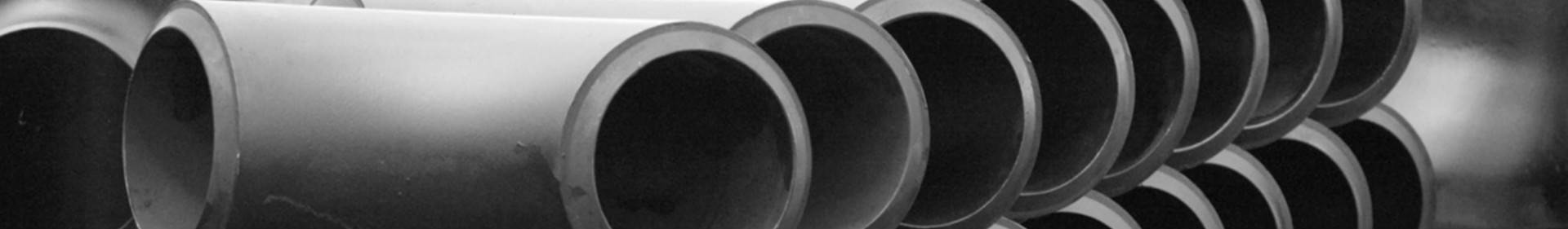

90 Deg Elbow
HOME ProductButted Weld Fittings
90 Deg Elbow

90 Deg Elbow

【Technology brief】

90 Deg Elbow Long Radius/Short Radius

【Materia】

Carbon steel: ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

【Size】

  Seamless Elbow ( 1/2″~24″), ERW / Welded / Fabricated Elbow (1/2″~48″)

Description

Buttweld 90° Pipe Elbows is one of the highly demandable products that are available in a variety of metals, materials, and sizes. The ss 90-degree pipe elbow not only success the industrial piping needs but they also perform as the reliable things that last for a long time.Moreover, the 90 degree bends over the quarter bend. The long radius and short radius elbows are used for high-temperature applications offering excellent performance in the long run. These elbows are lightweight and viable
economically.



Product Structure

ASME B16.9 Buttweld 90 Degree Elbow Available Types

Buttweld Elbow 90 Degree  Butt Weld Long Radius 90 Degree Elbows
Steel Pipe Elbow   90°Short Radius Elbow
Inconel Butt weld 90 Deg Pipe Elbow Schedule 10 90 Degree Elbow
Stainless Steel 90 Degree Pipe Elbow ASME B16.9 90 deg Long Radius Elbow
Suppliers SS 90 Deg. Elbows ANSI B16.9 90 Degree Buttweld Elbow Dealer
ASME B16.28 Buttweld 90 Degree Elbow Exporter Welded 90 Deg Elbow Stockholder
Carbon Steel 90deg.Elbow High Quality 90° Elbow Manufacturer
ASTM A403 Stainless Steel 90 Deg Elbows Duplex Steel 90° Pipe Elbow
Super Duplex Steel 90 Deg Elbow Copper Nickel 90 Deg Elbow
High Nickel Alloy 90° Elbow Titanium 90 Degree Elbow
 Hastelloy 90° Pipe Elbow Stockist Seamless 90° Pipe Elbow Distributors

Buttweld 90 Deg. Elbow Application
ASME B16.9 90 Degree Elbow are known to deliver exceptional performance and are generally developed for
meeting the demands. We oer a broad range of Buttweld 90 Degree Elbow through a worldwide network of
stock-keeping branches. These 90Deg. Buttweld Elbow is use in various industries like :
2019/7/2 Buttweld 90 Degree Elbow, SS 90 deg. Elbow, 90 degree Buttweld Elbow
https://www.neoimpex.com/asme-b16-9-buttweld-90-degree-pipe-elbow-manufacturer.html 4/8
Export Destinations For 90deg. Buttweld Pipe Elbow
 Stainless Steel 90° Buttweld Elbow uses in Oil and Gas Pipeline
 90° Buttweld Pipe Elbow uses in Chemical Industry
 Alloy Steel 90° Elbow uses in Plumbing
 Buttweld 90 Degree Pipe Elbow uses in Heating
 90 Degree Buttweld Elbow uses in Water Supply Systems
 ANSI B16.9 Buttweld 90° Pipe Elbow uses in Power Plant
 90° Elbow uses in Paper & Pulp Industry
 90° Degree Elbow uses in General Purpose Applications
 Buttweld 90° Long Radius Elbow uses in Fabrication Industry
 90° Buttweld Elbow uses in Food Processing Industry
 Buttweld 90° Short Radius Elbow uses in Structural Pipe

Technical Parameters

Carbon Steel Pipe Fitting – Long Radius Elbow 90

Nominal  Outside  Inside  Wall  Center  Pipe  Weight
Pipe Size Diameter Diameter Thickness To End Schedule Pounds
1/2 0.84 0.622 0.109 1.5 40 0.16
3/4 1.05 0.824 0.113 1.5 40 0.17
1 1.32 1.049 0.133 1.5 40 0.4
1 1/4 1.66 1.38 0.14 1.88 40 0.55
1 1/2 1.9 1.61 0.145 2.25 40 0.8
2 2.38 2.07 0.154 3 40 1.6
2 1/2 2.88 2.47 0.203 3.75 40 3.2
3 3.5 3.07 0.216 4.5 40 4.8
3 1/2 4 3.55 0.226 5.25 40 6.6
4 4.5 4.03 0.237 6 40 8.9
5 5.56 5.05 0.258 7.5 40 15.1
6 6.62 6.07 0.28 9 40 24
8 8.62 7.98 0.322 12 40 47.8
10 10.75 10.02 0.365 15 40 83.4
12 12.75 12 0.375 18 * 123
14 14 13.25 0.375 21 30 155
16 16 15.25 0.375 24 30 206
18 18 17.25 0.375 27 * 262
20 20 19.25 0.375 30 20 324
24 24 23.25 0.375 36 20 466
30 30 29.25 0.375 45 * 720
36 36 35.25 0.375 54 * 1,039
42 42 41.25 0.375 63 * 1,420
48 48 47.25 0.375 72 * 2,000
