Socket Weld 45 Deg Elbow
HOME ProductForged Fittings
Socket Weld 45 Deg Elbow

Socket Weld 45 Deg Elbow

【Technology brief】

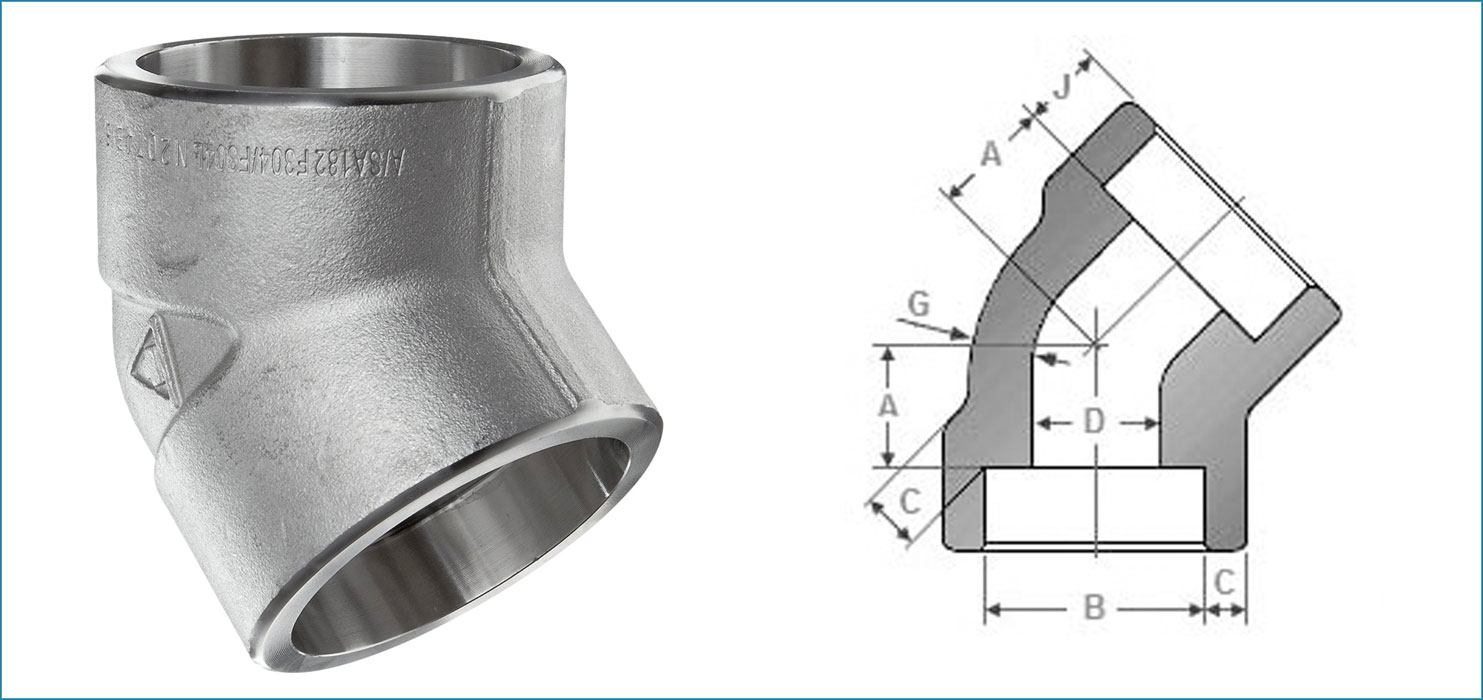

ASME B16.11 Forged Socket Weld 45 Deg Elbow

【Materia】

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,
API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

【Size】

1/8″ NB TO 4″ NB

Description

The technological advancement and modern equipment have resulted in ineffectiveness in the production of quality of Socket Weld 45° Elbows, HGFF GROUP is one engaged in supplying varieties of elbows to its global and domestic buyers at reasonable rates. In the industry, the product is undergoing stage wise thorough inspection by the expert to assure error-free and high quality of production. Each and every buyer can be assured to have the best deal with the industry as the product is provided at industrial rates. The Forged Socket Weld 45
Deg Elbow is resistance to corrosion/pitting/oxidation/stress corrosion cracking and crevice corrosion. It is having high tensile strength and good dimensional accuracy to ower. Additionally, it withstands heavy loads and also withstands in the high-temperature atmosphere

Product Structure



Standard Specification For Forged Socket Weld 45 Deg Elbow

Dimensions : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
2019/7/16 Socket Weld 45 Deg Elbow, SS 45 deg. Socket weld Elbow, 45 degrees Forged Socket weld Elbow
Size: 1/8″ NB TO 4″ NB
Pressure Class : 3000 LBS, 6000 LBS, 4500 LBS
Form: Forged Elbow, 45 Deg Elbow.
Material & Grades of Forged Socket Weld 45 Deg Elbow :
Stainless Steel Forged Socket Weld 45 Deg Elbow :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L,
F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Socket Weld 45 Deg Elbow :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Socket Weld 45 Deg Elbow :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,
API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Forged Socket Weld 45 Deg Elbow :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM /
ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Forged Socket Weld 45 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C
10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C
71500 ( CU -NI- 70/30)
Nickel Alloy Forged Socket Weld 45 Deg Elbow :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) ,
UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) ,
UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

ASME B16.11 Forged Socket Weld 45 Deg Elbow Available Types

Forged Socket weld Elbow 45 Degree Forged Socket weld Long Radius 45 Degree Elbows
150 lb. Socket Weld Fittings Pipe Elbow Socket weld 45° Short Radius Elbow
ASME B16.11 45 deg Socket weld Elbow 45 Degree Elbow 3000LB Socket Weld
Socket Weld Fittings 45 Degree Pipe Elbow Long Radius Socket Weld 45 Deg. Forged Elbows
ANSI B16.11 45 Degree Forged Elbow BS 3799 Forged 45 Degree Elbow
Forged Socket weld 45 Deg Elbow Socket weld 45° Pipe Elbow
Socket weld 90deg. Elbow High Quality Socket weld 45° Elbow
45° Socket Weld Elbow Socket Weld 45 elbow



Technical Parameters

ANSI/ASME B16.11 SOCKET WELD 45 DEGREE ELBOW DIMENSIONS

NPS 1/2 to 4 – Class 3000 Socket Weld 45 Degree Elbow Dimensions

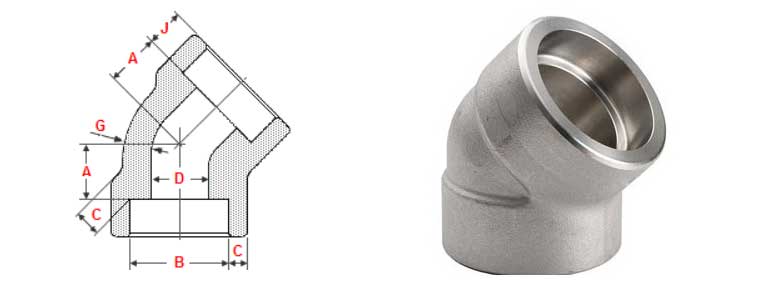

Socket Weld 45 Degree Elbow Drawing
NPS Socket
Bore
Depth
Socket
Bore
DIA
Socket
WT
Body
WT
B J D C G
1/2 21.95
21.70
10 16.6
15
4.65
4.10
3.75
3/4 27.30
27.05
13 21.7
20.2
4.90
4.25
3.90
1 34.05
33.80
13 27.4
25.9
5.70
5.00
4.55
1.1/4 42.80
42.55
13 35.8
34.3
6.05
5.30
4.85
1.1/2 48.90
48.65
13 41.7
40.1
6.35
5.55
5.10
2 61.35
61.10
16 53.5
51.7
6.95
6.05
5.55
2.1/2 74.20
73.80
16 64.2
61.2
8.75
7.65
7.00
3 90.15
89.80
16 79.5
46.4
9.50
8.30
7.60
4 115.80
115.45
19 103.8
100.7
10.70
9.35
8.55

Class 6000 Socket Weld 45° Elbow Dimensions NPS 1/2 to 2

NPS Socket
Bore
Depth
Socket
Bore
DIA
Socket
WT
Body
WT
B J D C G
1/2 21.95
21.70
10 12.5
11
5.95
5.20
4.80
3/4 27.30
27.05
13 16.3
14.8
6.95
6.05
5.55
1 34.05
33.80
13 21.5
19.9
7.90
6.95
6.35
1.1/4 42.80
42.55
13 30.2
28.7
7.90
6.95
6.35
1.1/2 48.90
48.65
13 34.7
33.2
8.90
7.80
7.15
2 61.35
61.10
16 43.6
42.1
10.90
9.50
8.75

General notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Socket Bore (B) – Maximum and minimum dimensions.
  • Bore Diameter (D) – Maximum and minimum dimensions.
  • Socket wall thickness – (C) – Average of Socket wall thickness.
  • Dimensional tolerances center to bottom of socket – (A)
    NPS 1/2 and NPS 3/4 = +/- 1.5 mm
    NPS 1 to NPS 2 = +/- 2 mm
    NPS 2.1/2 to NPS 4 = +/- 2.5 mm

Application



Forged Socket Weld 45 Deg Elbow Application

ASME B16.11 45 Degree Socket weld Elbow are known to deliver exceptional performance and are generally
developed for meeting the demands. We offer a broad range of Forged 45 Degree Socket weld Elbow through a
the worldwide network of stock-keeping branches. This 45Deg. Socket weld Elbow is used in various industries like :
Export Destinations For 45deg. Forged Socket weld Pipe Elbow
 Stainless Steel 45° Forged Elbow uses in Oil and Gas Pipeline
 45° Forged Pipe Elbow uses in Chemical Industry
 Alloy Steel 45° Elbow uses in Plumbing
 Forged 45 Degree Pipe Elbow uses in Heating
 45 Degree Forged Elbow uses in Water Supply Systems
 ANSI B16.9 Forged 45° Pipe Elbow uses in Power Plant
 45° Elbow uses in Paper & Pulp Industry
 45° Degree Elbow uses in General Purpose Applications
 Forged 45° Long Radius Elbow uses in Fabrication Industry
 45° Forged Elbow uses in Food Processing Industry
 Forged 45° Short Radius Elbow uses in Structural Pipe

Export Country

ASME B16.11 Socket Weld 90 Degree Pipe Elbows Supplying to Following Regions & Countries:
AFRICA MIDDLE EAST ASIA EUROPE ASIA
Nigeria Saudi Arabia Norway India
Algeria Iran Germany Singapore
Angola Iraq France Malaysia
Tanzania Uae Italy Indonesia
Libya Qatar Uk Thailand
Egypt Bahrain Spain Vietnam
Sudan Oman Netherland South Korea
Equatorial Guinea Kuwait Belgium Japan
The Republic Of Congo Turkey Greece Sri Lanka
Gabon Jordan Czech Republic Maldives
NORTH AMERICA SOUTH AMERICA Portugal Bangladesh
Usa Argentina Hungary Mayanmar
Canada Bolivia SOUTH AFRICA Taiwan
Mexico Brazil   Cambodia
Costa Rica Chile
Trinidad And Tobago Venezuela
Jamaica Colombia
Denmark Ecuador
  Guyana
  Paraguay
  Uruguay
