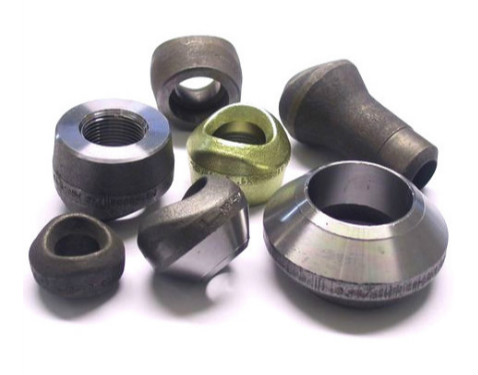

Carbon Steel Outlets
HOME Product Carbon Steel Fittings

Carbon Steel Outlets

Carbon Steel Outlets

Best Price of Carbon Steel Elbow Outlets Exporter, Carbon Steel Threaded Outlets, Stockholder Of Carbon Steel
Socketweld Outlets, Carbon Steel A105 Lateral Outlets, Carbon Steel Outlets Fittings Traders, Carbon Steel Flange
Outlet, ASME SA350 Carbon Steel Industrial Outlets Wholesaler in China.
Stockist of Carbon Steel Threaded Pipe Outlets, ANSI B16.11, MSS SP-43, or MSS SP-97 Outlets, Carbon Steel MSS SP97 Outlets, Carbon Steel A350 LF2 Forged Branch Outlets Fittings, Global Supplier of Carbon Steel Pipe Outlets, A350 LF3 Carbon Steel Outlets Pipe Fittings Dealer in China.

Description

HGFF Group Co., Ltd.is an ISO certified company. We stand by the principles of quality and safety, and we have devoted ourselves to
precision. HGFF has given an impetus to various industries during the last three decades. We have always focused on delivering
outstanding products and extraordinary services. We invest in better resources and reliable technology and machinery. We are
manufacturers, suppliers, and exporters of Carbon Steel Outlets which are capable of functioning in temperatures that range from ambient to high temperatures. Carbon Steel A105 Socketweld Outlets are low Carbon olets that are very ductile and give a 90° branch on the pipe run. They are class 3000, 6000 and 9000 and are most capable of joining small bore pipes to larger size main runs. Our Carbon

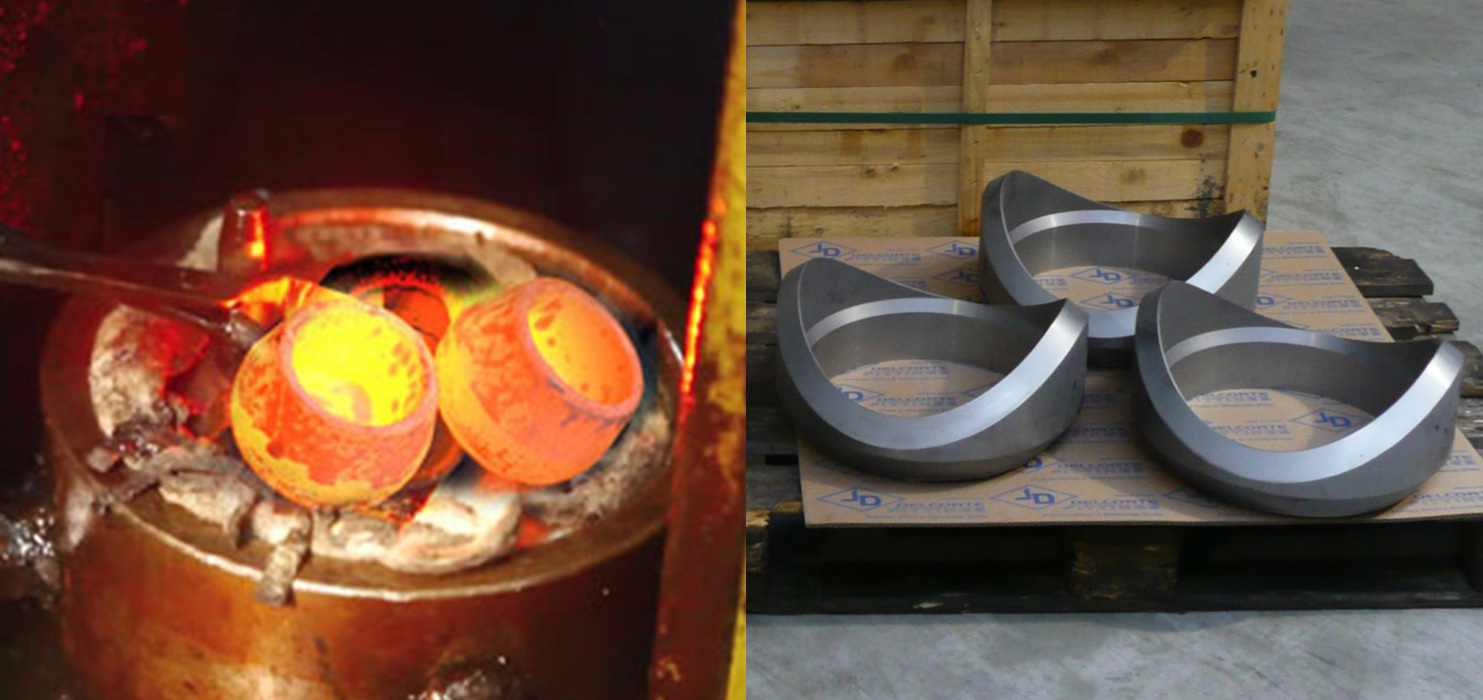

A105 Steel Welding Outlets are formed through forging and can be normalized to remove the internal stress. They are not cold worked but CS welding outlets are an inexpensive alternative to CS Tees.
Readily machinable and weldable, our CS A105 Elbow Outlets connect large diameter pipes and are often Fixed to thermowells which work at highly undulating, elevated temperatures. Also We offer a wide range of Carbon Steel ASTM A105 Outlets such as A105 F5 Carbon Steel Welding Outlets, Carbon Steel F9 Threaded Outlets, A105 F11
Socketweld Outlets, A105 F12 Carbon Steel Elbow Outlets, Carbon Steel F22 Lateral Outlets, A105 F91 Carbon
Steel Nipple Outlets etc.

Specification

Carbon Steel Olets Specification

Specifications ASTM / ASME A 105, ASTM / ASME A 350 LF 2.
Connect Type Welded, threaded, BW, SW
Dimensions ASME/ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size 1/8″-4″ (DN6-DN100)
Process Free forging, plate cutting .forged

Carbon Steel Weldolets Manufacturing Standards:

ASTM A105 / ASME SA105 Standard Specification for Wrought Austenitic Steel Piping Fittings
ASME B16.11 Forged Fittings Socket – Welding and Threaded
MSS SP-97 Integrally Reinforced Forged Branch Outlet Fittings – Socket Welding, Threaded and Buttwelding Ends
Carbon Steel Weldolet Dimensions
Schedule STD
Size Size in mm Height A OD -B Hole Dia C Weight in KG
1/4 8 14.3 25.4 15.9 0.04
3/8 10 19.05 31.75 19.05 0.07
1/2 15 19.05 34.93 23.81 0.08
3/4 20 22.23 44.45 30.16 0.11
1 25 26.99 53.98 36.51 0.23
1 1/4 32 31.75 65.09 44.45 0.36
1 1/2 40 33.34 73.03 50.8 0.45
2 50 38.1 88.9 65.09 0.79
2 1/2 65 41.28 103.19 76.2 1.13
3 80 44.45 122.24 93.66 1.81
3 1/2 90 47.63 142.88 112.71 2.5
4 100 50.8 152.4 120.65 2.86
5 130 57.15 179.3 141.29 4.65
6 150 60.33 215.9 169.86 6.44
8 200 69.85 263.53 220.66 10.66
10 250 77.79 322.26 274.64 17.69
12 300 85.73 377.83 325.44 26.76
14 350 88.9 409.58 357.19 29.94
16 400 93.6 463.55 407.99 34.02
18 450 96.84 520.7 458.79 44
20 500 101.6 571.5 508 53.52
24 600 144.5 717.5 609.6 101
26 650 155.6 778 660.4 120
30 750 174.6 893.6 762 190
36 900 206.4 1070 914.4 310
40 1000 225.4 1187.6 1016 435
42 1050 235 1244.6 1066.8 540
48 1200 241.3 1404 1219.2 750
Schedule XS
Size Size in mm Height – A OD – B Hole Dia – C Weight in KG
1/4 8 N/A 25.4 15.88 0.05
3/8 10 N/A 31.75 19.05 0.07
1/2 15 19.05 34.93 23.81 0.09
3/4 20 22.23 44.45 30.16 0.14
1 25 26.99 53.98 36.51 0.21
1 1/4 32 31.75 65.09 44.45 0.41
1 1/2 40 33.34 73.03 50.8 0.5
2 50 38.1 88.9 65.09 0.79
2 1/2 65 41.28 103.19 76.2 1.18
3 80 44.45 122.24 93.66 1.86
3 1/2 90 47.63 136.53 112.71 2.54
4 100 50.8 152.4 120.65 2.9
6 150 77.79 225.43 169.86 10.43
8 200 98.43 292.1 220.66 16.78
10 250 93.66 323.85 265.11 20.87
12 300 103.1 379.41 317.5 27.67
14 350 100.01 431.8 350.84 31.75
16 400 106.36 466.73 403.23 46.27
18 450 111.13 523.88 455.61 58.97
20 500 119.06 582.61 509.59 71.67
24 600 152.4 722.2 609.6 142
26 650 165.1 782.6 660.4 168
30 750 181 896.8 762 218
36 900 212.7 1074.4 914.4 404
40 1000 235 1194 1016 582
42 1050 244.5 1250.8 1066.8 590
48 1200 273 1425.6 1219.2 910
Schedule XXS
Size Size in mm Height – A OD – B Hole Dia  – C Weight in KG
1/2 15 28.58 34.93 14.29 0.11
3/4 20 31.75 44.45 19.05 0.32
1 25 38.1 50.8 25.4 0.38
1 1/4 32 44.45 61.91 33.34 0.57
1 1/2 40 50.8 69.85 38.1 0.79
2 50 55.56 80.96 42.86 0.97
2 1/2 65 61.91 96.84 53.98 1.53
3 80 73.03 120.65 73.03 2.87
4 100 84.14 152.4 98.43 4.76
5 130 93.66 187.33 122.24 6.46
6 150 104.78 220.66 146.05 12.7
8 200 111.12 284.16 173.04 20.41
10 250 125.41 312.74 215.9 38.56
Schedule 160
Size Size in mm Height  – A OD – B Hole Dia – C Weight in KG
1/2 15 28.58 34.93 14.29 0.11
3/4 20 31.75 44.45 19.05 0.32
1 25 38.1 50.8 25.4 0.38
1 1/4 32 44.45 61.91 33.34 0.57
1 1/2 40 50.8 69.85 38.1 0.79
2 50 55.56 80.96 42.86 0.97
2 1/2 65 61.91 96.84 53.98 1.53
3 80 73.03 120.65 73.03 2.87
4 100 84.14 152.4 98.43 4.76
5 130 93.66 187.33 122.24 6.46
6 150 104.78 220.66 146.05 12.7
8 200 111.12 284.16 173.04 20.41
10 250 125.41 312.74 215.9 38.56

Application

Carbon Steel Outlets Fittings Application
ASTM A105 Carbon Steel Outlets are known to deliver exceptional performance and are generally developed for
meeting the demands. We offer a broad range of ASTM A105 Carbon Steel Outlets through a worldwide network
of stock-keeping branches. This ASTM A105 Branch Connection is used in various industries like :
 Carbon Steel Outlets uses in Oil and Gas Pipeline
 ASTM A105 Outlets uses in Chemical Industry
 Grade A350 LF2 Carbon Steel Outlets Fittings uses in Plumbing
 Carbon Steel ASTM A105 Outlets uses in Heating
 ASTM A105 CS Outlets Fittings uses in Water Supply Systems
 ASTM A105 Carbon Steel Pipe Outlets uses in Power Plant
 Carbon Steel Outlets Pipe Fittings uses in Paper & Pulp Industry
 Carbon Steel A350 LF3 Outlets uses in General Purpose Applications
 ASME SA105 Carbon Steel Outlets uses in Fabrication Industry
 Carbon Steel Outlets uses in Food Processing Industry
 Carbon Steel Branch Connection uses in Structural Pipe

Type

Carbon Steel Olet Fittings Available Types & Shapes

Carbon Steel Olet Fitting ASTM A105 Carbon Steel Branch Connection
Carbon Steel Olets Carbon Steel A105 Outlets
Carbon Steel ASTM A105 Branch Connection Fittings A105 Carbon Swagged Nippolet
Carbon Steel A350 LF2 Elbolet Low Temp. Carbon Steel Branzolet
ASTM A105 CS Sockolet A105 Carbon Steel Nippolet
Carbon Steel A350 Outlets Pipe Fittings Carbon Steel A105 Threadolet
Carbon Steel A350 LF3 Insert weldolet Carbon Steel A105 Weldolet
Carbon Steel A105 Sweepolet Carbon Steel A105 Welding Outlets
A105 Carbon Steel Flangeolet A105 Carbon Steel 45°Outlets
Carbon Steel A350 Insert Weld Outlets Carbon Steel Coupolet
ANSI B16.11 Carbon Steel Threading Outlets Carbon Steel Socket weld Outlets
ASME SA105 Carbon Steel 90°Outlets ASME SA105 Carbon Steel Nipple Outlets
LTCS ASTM A105 Threaded Outlets Carbon Steel Pipe Outlets
MSS SP-97 Carbon Steel Pipe Outlets ASTM A105 Carbon Steel Sweep Outlets
