Socket Weld Pipe Cap

【Technology brief】

ASME B16.11 Forged Socket Weld Pipe Cap

【Materia】

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,
API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

【Size】

1/8″ NB TO 4″ NB

Consult

Contact

Description
Product Structure
Technical Parameters
Application
Type

Description

HGFF Group Co.,Ltd. is a manufacturer, distributor and supplier of Socket Weld Caps, It is an innovative ISO certified company that uses responsive services to entice the customers. A Socket Weld fitting is a kind of pipe fitting which is inserted into a recessed
valve, fitting or flange. A Stainless Steel Socket Weld Cap is a type of pipe fitting, usually liquid or gas-tight which covers the end of a pipe to stop the ow. The functions of a cap are similar to a plug. They have excellent corrosion resistance. They are mainly used for small pipe diameters. This vast variety is provided to the clients by the renowned
stockist and exporter, HGFF Group Co., Ltd., in multiple sizes, as per the customized requirements. They are offered to clients
with the option of customizing the size as per the individual purchasers

Product Structure

ANSI/ASME B16.11 Socket Weld Cap-Standard Specification

Dimensions	ASME 16.11, MSS-SP-79, MSS-SP-95, 83, 95, 97, BS 3799
Size	1/8″ NB TO 4″ NB
Pressure Ratings	2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type	Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form	Socket Weld Cap, Socket Weld End Cap, Socket Weld Pipe Cap
Production Grades	Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low-temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards of Socket Weld End Pipe Cap

ASME:	ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN:	DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN:	EN10253-1, EN10253-2

Forged Socket Weld Pipe Cap Material Grades

Nickel Alloy Forged Socket Weld Pipe Cap :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOYY C 276)

Stainless Steel Forged Socket Weld Pipe Cap :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel Forged Socket Weld Pipe Cap :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel Forged Socket Weld Pipe Cap :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel Forged Socket Weld Pipe Cap :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Copper Alloy Steel Forged Socket Weld Pipe Cap : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30)

Technical Parameters

ANSI/ASME B16.11 SOCKET WELD CAP DIMENSIONS

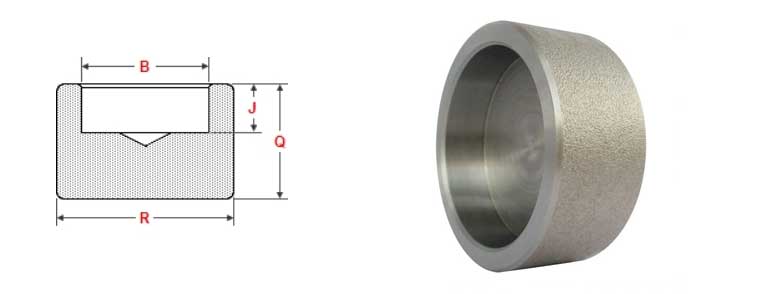

Socket Weld Pipe Cap Dimensions

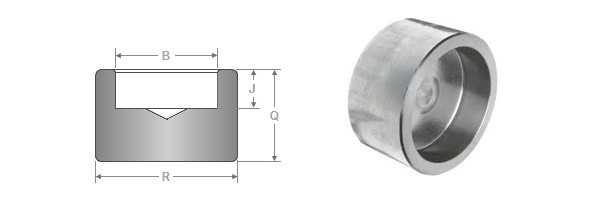

Socket Weld Pipe Cap Drawing

Class 3000 Socket Weld Cap Dimensions NPS 1/2 to 2

NPS	Socket Bore	Depth Socket	Length Cap	Diameter Cap
NPS	B	J	Q	R
1/2	21.95 21.70	10	19	32
3/4	27.30 27.05	13	23	38
1	34.05 33.80	13	26	45
1.1/4	42.80 42.55	13	28	55
1.1/2	48.90 48.65	13	30	65
2	61.35 61.10	16	36	75
2.1/2	74.20 73.80	16	38	92
3	90.15 89.80	16	42	110
4	115.80 115.45	19	48	140

Class 6000 Socket Weld Pipe Cap Dimensions NPS 1/2 to 2

NPS	Socket Bore	Depth Socket	Length Cap	Diameter Cap
NPS	B	J	Q	R
1/2	21.95 21.70	10	22	34
3/4	27.30 27.05	13	26	41
1	34.05 33.80	13	28	50
1.1/4	42.80 42.55	13	30	58
1.1/2	48.90 48.65	13	32	66.5
2	61.35 61.10	16	38	85

General notes:
Dimensions are in millimeters unless otherwise indicated.
Socket Bore (B) – Maximum and Minimum dimensions.

Application

Forged Socket Weld Pipe Cap Application

ASME B16.11 Socket weld Pipe Cap are known to deliver exceptional performance and are generally developed
for meeting the demands. We offer a broad range of Forged Socket weld Pipe Cap through a worldwide network
of stock-keeping branches. This Forged Socket weld Pipe Cap is used in various industries like :
 Stainless Steel Forged Socket weld Pipe Cap uses in Oil and Gas Pipeline
 Forged Socket weld Pipe Cap uses in Chemical Industry
 Alloy Steel Socket weld Pipe Cap uses in Plumbing
 Forged Socket weld End Pipe Caps uses in Heating
 Socket weld Forged Pipe Caps uses in Water Supply Systems
 ANSI B16.11 Forged Socket weld Pipe Cap uses in Power Plant
 Socket weld Pipe Cap uses in Paper & Pulp Industry
 Forged Socket weld Pipe Caps uses in General Purpose Applications
 Forged Socket weld Pipe Cap uses in Fabrication Industry
 Forged Socket weld Pipe Cap uses in Food Processing Industry
 Forged Socket weld Pipe Caps uses in Structural Pipe

Type

ASME B16.11 Forged Socket Weld Cap Available Types

Forged Socket weld Pipe Cap	Socket Welding Pipe Cap
150 lb. Socket Weld Fittings End Cap	2 inch Socket weld Cap
ASME B16.11 Socket Weld End Pipe cap	3000LB Socket Weld Cap
3/4 Socket Weld Cap	Class 6000 Socket Weld Pipe Cap
ANSI B16.11 Forged Socket Weld End Pipe Cap	BS 3799 Forged Socket Weld Cap
Forged Socket Weld End Cap	Socket Weld Cap Weight
2 Socket Weld Cap	High Quality Socket weld Cap
3000# Forged Socket Weld Cap	ANSI B16.11 Socket Weld End Cap
1 inch Socket Weld Pipe Cap	Socket Weld Cap
