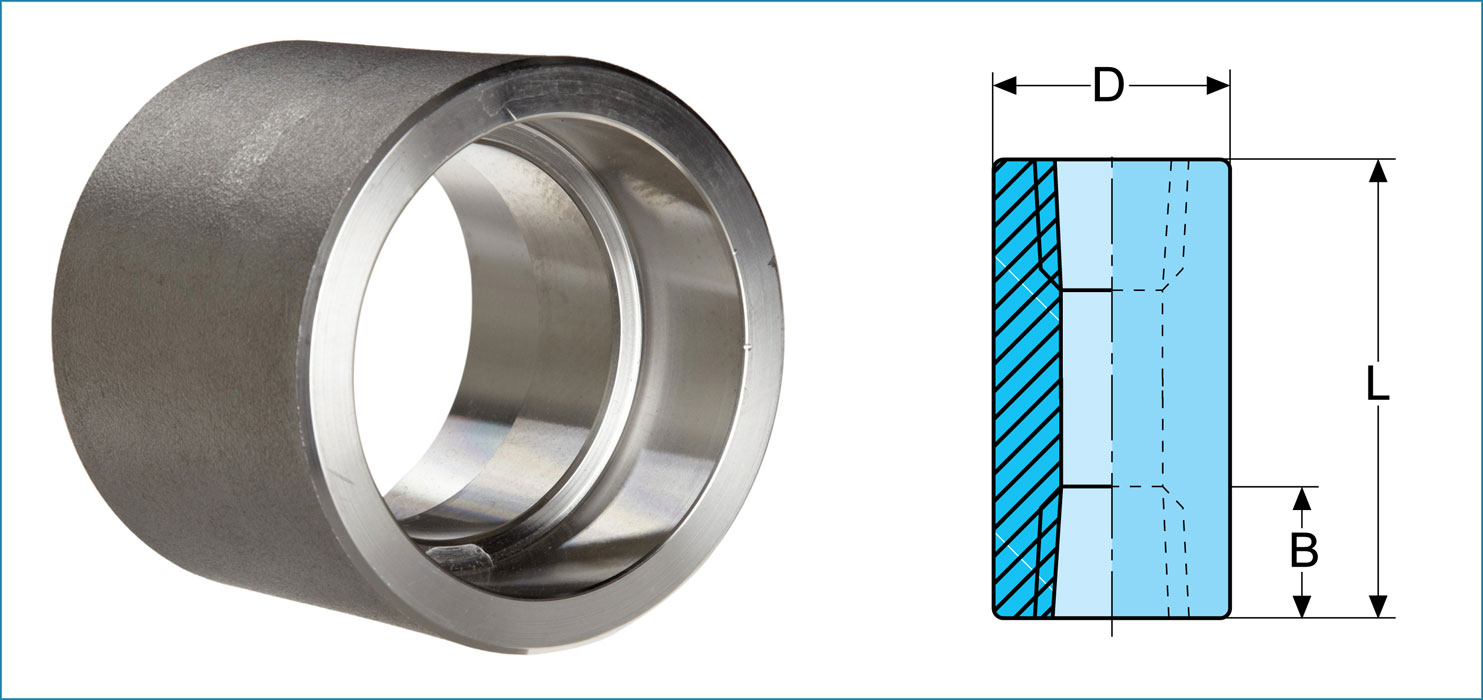

Socket Weld Full Coupling

【Technology brief】

ASME B16.11 Forged Socket Weld Full Coupling

【Materia】

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,
API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

【Size】

1/8″ NB TO 4″ NB

Consult

Contact

Description
Product Structure
Technical Parameters
Application

Description

As an ISO certified company, HGFF Group Co.,Ltd. has made its way into the national and international markets as one of the leading distributors, supplier and stockist of Socket Weld Full Coupling. Socket Weld Full Couplings are used to connect small bore
pipes as a projection of a welding effect on the pipe bore. Both the ends of these Full Couplings are threaded. They are highly demanded in the pipe fitting market. These Stainless Steel Socket Weld Half Couplings are rigorously tested to ensure the highest quality and
endurance under any extreme conditions. These ANSI B16.11 Forged Socket Weld Full Couplings are used in applications such as pharmaceuticals, shipbuilding, etc. HGFF Group Co., Ltd. owers their
clientele the ASME B16.11 Forged Socket Weld Full Couplings at reasonable prices. They are provided in different sizes and thickness for the specific needs of the customers.

Product Structure

ANSI/ASME B16.11 Socket Weld Full Coupling Standard Specification

Socket Weld Full Coupling Sizes

Dimensions	ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size	1/8″ NB TO 4″ NB
Pressure Ratings	2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Form	Full Couplings, Reducing Coupling
Production Grades	Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards of Socket Weld Full Coupling

ASME:	ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN:	DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN:	EN10253-1, EN10253-2

Forged Socket Weld Full Coupling Material Grades

Nickel Alloy Forged Socket Weld Full Coupling :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Stainless Steel Forged Socket Weld Full Coupling:
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel Forged Socket Weld Full Coupling :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel Forged Socket Weld Full Coupling:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel Forged Socket Weld Full Coupling :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Copper Alloy Steel Forged Socket Weld Full Coupling: ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30)

ASME B16.11 Forged Socket Weld Full Coupling Available Types

Forged Socket weld Full Coupling	Socket Weld Full Coupling Class 3000
Socket Weld Reducing Coupling	3 4 Socket Weld Full Coupling
ASME B16.11 Socket Weld Reducing Coupling	3000LB Socket Weld Full Coupling
ANSI B16.11 Forged Socket Weld Full Coupling	Class 6000 Socket Weld Full Coupling
Socket Weld Full Coupling Weight	BS 3799 Forged Socket Weld Full Coupling
Socket Weld Full Coupling Reducers	High Quality Socket weld Full Coupling
2 Socket Weld Full Coupling	1/2 Socket Weld Full Coupling
3000# Forged Socket Weld Full Coupling	3/4 Socket Weld Full Coupling
5 Socket Weld Full Coupling	1 inch Socket Weld Full Coupling
8 Socket Weld Full Coupling	2 inch Socket Weld Full Coupling
6000# Socket Weld Full Coupling	3 inch Socket Weld Full Coupling
6 Socket Weld Full Coupling	6 inch Socket Weld Full Coupling

Technical Parameters

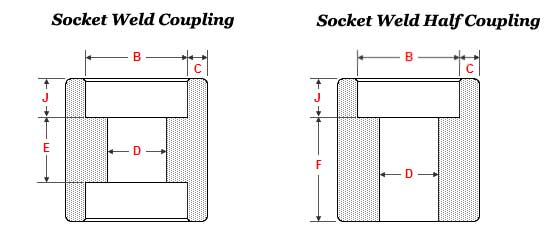

ANSI/ASME B16.11 SOCKET WELD FULL COUPLING DIMENSIONS

Socket Weld Reducing Coupling Dimensions

3000# Socket Weld Full Coupling Dimensions

NPS	Socket Bore	Depth Socket	Bore DIA	Socket wall THK
NPS	B	J	D	C
1/2	21.95 21.70	10	16.6 15	4.65 4.10
3/4	27.30 27.05	13	21.7 20.2	4.90 4.25
1	34.05 33.80	13	27.4 25.9	5.70 5.00
1.1/4	42.80 42.55	13	35.8 34.3	6.05 5.30
1.1/2	48.90 48.65	13	41.7 40.1	6.35 5.55
2	61.35 61.10	16	53.5 51.7	6.95 6.05
2.1/2	74.20 73.80	16	64.2 61.2	8.75 7.65
3	90.15 89.80	16	79.5 46.4	9.50 8.30
4	115.80 115.45	19	103.8 100.7	10.70 9.35
NPS	Laying lengths
NPS	Coupling E		Half coupling F
1/2	9.5		22.5
3/4	9.5		23.5
1	13		29
1.1/4	13		30
1.1/2	13		32
2	19		41
2.1/2	19		42.5
3	19		44.5
4	19		47.5

6000# Socket Weld Full Coupling Dimensions

PS	Socket Bore	Depth Socket	Bore DIA	Socket wall THK
PS	B	J	D	C
1/2	21.95 21.70	10	12.5 11	5.95 5.20
3/4	27.30 27.05	13	16.3 14.8	6.95 6.05
1	34.05 33.80	13	21.5 19.9	7.90 6.95
1.1/4	42.80 42.55	13	30.2 28.7	7.90 6.95
1.1/2	48.90 48.65	13	34.7 33.2	8.90 7.80
2	61.35 61.10	16	43.6 42.1	10.90 9.50
NPS	Laying lengths
NPS	Coupling E		Half coupling F
1/2	9.5		22.5
3/4	9.5		23.5
1	13		29
1.1/4	13		30
1.1/2	13		32
2	19		41

General notes:

Dimensions are in millimeters unless otherwise indicated.
Socket Bore (B) – Maximum and Minimum dimensions.
Bore Diameter (D) – Maximum and Minimum dimensions.
Socket wall thickness – (C) – Average of Socket wall thickness.
Dimensional tolerances laying lengths – (E & F)
NPS 1/2 and NPS 3/4 = +/- 1.5 mm
NPS 1 to NPS 2 = +/- 2 mm
NPS 2.1/2 to NPS 4 = +/- 2.5 mm
