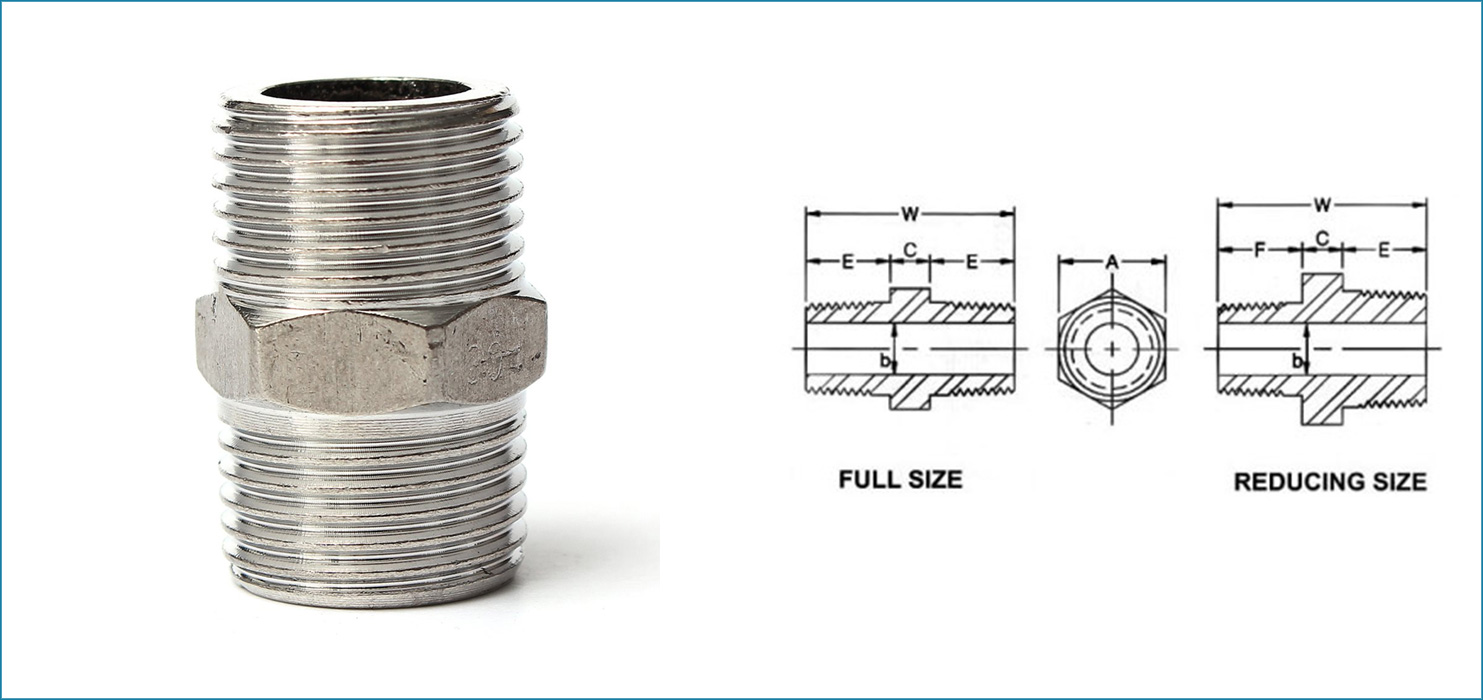

Threaded / Screwed Hex Nipple
HOME ProductForged Fittings
Threaded / Screwed Hex Nipple

Threaded / Screwed Hex Nipple

【Technology brief】

ASME B16.11 Forged Threaded / Screwed Hex Nipple

【Materia】

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,
API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

【Size】

 1/8″ NB TO 4″ NB

Description

An ISO certied company, HGFF Group Co.,Ltd. is a leading exporter, stockist and supplier of Threaded /Screwed Hex Nipples. The high-quality raw material is utilized along with modern equipment to produce these fittings. Stainless Steel Threaded Hex Nipples are used to t a straight end pipe or a hose. They are tested and verified and are proven to have dimensional accuracy, durability and precision. These ANSI B16.11 Threaded Hex Nipples are available in various
shapes, sizes, thickness and specifications as per the clients’ requirements. They are easy to install and are corrosion resistant. It
exhibits awless finishing and superior performance.HGFF Group Co., LTD.invests in premium quality raw material and modern technology which helps them offer the right kind of products to the clients and thus ensure maximum satisfaction. These fittings are created under the expertise of professionals.

Product Structure

Threaded Hex Nipple Standard

Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size 1/8″ NB TO 4″ NB
Class 3000 LBS, 6000 LBS, 9000 LBS
Type Threaded (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form Threaded Hex Nipple
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low-temperature Steel, Carbon Steel, Cupro Nickel

ASME B16.11 Threaded Hex Nipple Dimensions Standrad

ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

ASME B16.11 Threaded Hex Nipple Material

ASME B16.11 Stainless Steel Forged Threaded Hex Nipple :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel ASME B16.11 Forged Threaded Hex Nipple :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel ASME B16.11 Forged Threaded Reducing Nipple:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

ASME B16.11 Alloy Steel Forged Threaded Hex Nipple:
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

ASME B16.11 Copper Alloy Steel Forged Threaded Reducing Nipple: ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Threaded ASME B16.11 Reducing Nipple:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)



Technical Parameters

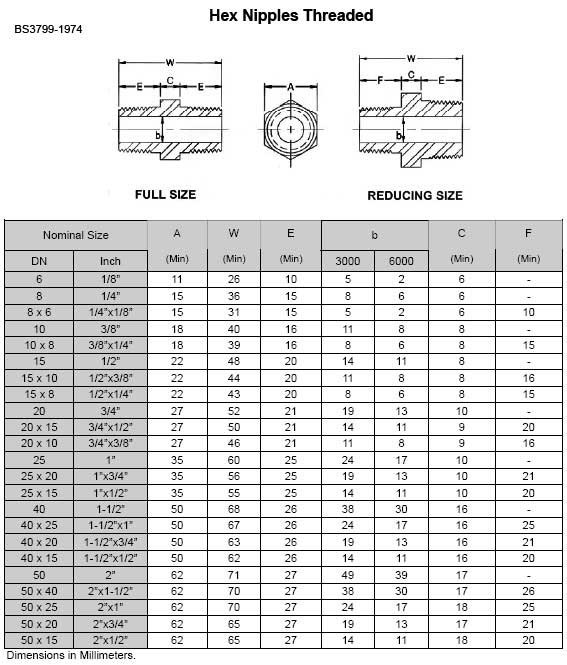

ANSI/ASME B16.11 THREADED HEX NIPPLE DIMENSIONS

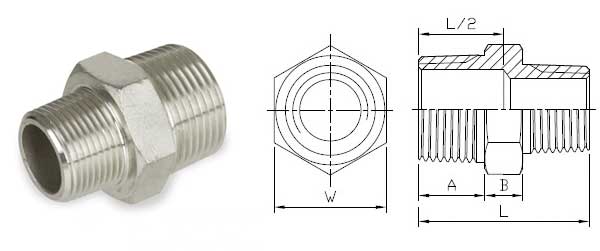

Threaded Reducing Nipple Dimensions

Standard PatternEconomic Pattern

Standard Pattern Economic Pattern
SIZE A B L W SIZE A B L W
mm in mm in mm in mm in mm in mm in mm in mm in
1/4″ 1/8″ 13 0.51 6 0.24 31 1.22 15.1 0.59 1/4″ 1/8″ 11 0.43 6 0.24 29 1.14 15 0.59
3/8″ 1/8″ 14 0.55 7 0.28 34 1.34 18.6 0.73 3/8″ 1/8″ 12 0.47 7 0.28 31 1.22 18 0.71
1/4″ 14 0.55 7 0.28 34 1.34 18.6 0.73 1/4″ 12 0.47 7 0.28 32 1.26 18 0.71
1/2″ 1/8″ 16.5 0.65 8 0.31 36.5 1.44 23 0.91 1/2″ 1/8″ 14 0.55 7 0.28 34 1.34 23 0.91
1/4″ 16.5 0.65 8 0.31 36.5 1.44 23 0.91 1/4″ 14 0.55 7 0.28 35 1.38 23 0.91
3/8″ 16.5 0.65 8 0.31 36.5 1.44 23 0.91 3/8″ 14 0.55 7 0.28 36 1.42 23 0.91
3/4″ 1/8″ 16 0.63 8 0.31 40 1.57 29 1.14 3/4″ 1/8″ 14 0.55 7 0.28 34 1.34 29 1.14
1/4″ 16 0.63 8 0.31 40 1.57 29 1.14 1/4″ 14 0.55 7 0.28 35 1.38 29 1.14
3/8″ 17 0.67 8 0.31 41 1.61 28.5 1.12 3/8″ 14 0.55 7 0.28 36 1.42 29 1.14
1/2″ 17 0.67 8 0.31 41.5 1.63 28.5 1.12 1/2″ 14 0.55 7 0.28 39 1.54 29 1.14
1″ 1/4″ 20 0.79 9 0.35 41 1.61 35.4 1.39 1″ 1/4″ 17.5 0.69 9 0.35 41 1.61 35 1.38
3/8″ 20 0.79 9 0.35 42.5 1.67 35.4 1.39 3/8″ 17.5 0.69 9 0.35 42 1.65 35 1.38
1/2″ 20 0.79 9 0.35 45 1.77 35.4 1.39 1/2″ 17.5 0.69 9 0.35 45 1.77 35 1.38
3/4″ 20 0.79 9 0.35 45 1.77 35.4 1.39 3/4″ 17.5 0.69 9 0.35 45 1.77 35 1.38
1-1/4″ 1/4″ 21 0.83 10 0.39 42 1.65 44.5 1.75 1-1/4″ 1/4″ 18 0.71 10 0.39 42 1.65 45 1.77
3/8″ 21 0.83 10 0.39 47 1.85 44.5 1.75 3/8″ 18 0.71 10 0.39 43 1.69 45 1.77
1/2″ 21 0.83 10 0.39 49 1.93 44.5 1.75 1/2″ 18 0.71 10 0.39 46 1.81 45 1.77
3/4″ 21 0.83 10 0.39 49 1.93 44.5 1.75 3/4″ 18 0.71 10 0.39 46 1.81 45 1.77
1″ 22 0.87 10 0.39 52 2.05 44.5 1.75 1″ 18 0.71 10 0.39 50 1.97 45 1.77
1-1/2″ 1/4″ 20 0.79 10.5 0.41 42.5 1.65 51 2.01 1-1/2″ 1/4″ 18.5 0.73 10.5 0.41 42.5 1.67 50 1.97
3/8″ 21 0.83 10 0.39 47 1.85 50 1.97 3/8″ 18.5 0.73 10.5 0.41 43.5 1.71 50 1.97
1/2″ 21 0.83 10 0.39 49 1.93 50 1.97 1/2″ 18.5 0.73 10.5 0.41 46.5 1.83 50 1.97
3/4″ 21 0.83 10 0.39 49 1.93 50 1.97 3/4″ 18.5 0.73 10.5 0.41 46.5 1.83 50 1.97
1″ 21.5 0.85 11 0.39 52.5 2.07 50 1.97 1″ 18.5 0.73 10.5 0.41 50.5 1.99 50 1.97
1-1/4″ 22 0.87 11 0.43 55 2.17 51 2.01 1-1/4″ 18.5 0.73 10.5 0.41 50.5 1.99 50 1.97
2″ 3/8″ 23 0.91 11 0.43 52 2.05 61.5 2.42 2″ 3/8″ 20 0.79 11 0.43 45 1.77 62 2.44
1/2″ 23 0.91 11 0.43 52 2.05 61.5 2.42 1/2″ 20 0.79 11 0.43 48 1.89 62 2.44
3/4″ 23 0.91 11 0.43 41.5 1.63 61.5 2.42 3/4″ 20 0.79 11 0.43 48 1.89 62 2.44
1″ 23 0.91 11 0.43 53.5 2.11 61.5 2.42 1″ 20 0.79 11 0.43 52 2.05 62 2.44
1-1/4″ 23 0.91 11 0.43 56 2.2 61.5 2.42 1-1/4″ 20 0.79 11 0.43 52 2.05 62 2.44
1-1/2″ 23 0.91 11 0.43 55.5 2.19 61.5 2.42 1-1/2″ 20 0.79 11 0.43 52 2.05 62 2.44
2-1/2″ 3/4″ 27.5 1.08 13 0.51 64 2.52 78 3.07 2-1/2″ 3/4″ 22.5 0.89 13 0.51 52.5 2.07 78 3.07
1″ 27.5 1.08 13 0.51 63.5 2.5 78 3.07 1″ 22.5 0.89 13 0.51 56.5 2.22 78 3.07
1-1/4″ 27.5 1.08 13 0.51 63.5 2.5 78 3.07 1-1/4″ 22.5 0.89 13 0.51 56.5 2.22 78 3.07
1-1/2″ 27.5 1.08 13 0.51 63.5 2.5 78 3.07 1-1/2″ 22.5 0.89 13 0.51 56.5 2.22 78 3.07
2″ 27.5 1.08 13 0.51 65.5 2.58 78 3.07 2″ 22.5 0.89 13 0.51 57.5 2.26 78 3.07
3″ 1-1/2″ 28 1.1 15 0.59 68 2.68 92 3.62 3″ 1-1/2″ 25 0.98 15 0.59 61 2.4 91 3.58
2″ 28 1.1 15 0.59 68.5 2.7 93 3.66 2″ 25 0.98 15 0.59 62 2.44 91 3.58
2-1/2″ 28.5 1.12 15 0.59 71 2.8 92 3.62 2-1/2″ 25 0.98 15 0.59 64.5 2.54 91 3.58
4″ 2″ 30 1.18 15 0.59 75 2.95 117 4.61 4″ 2″ 27 1.06 15 0.59 64 2.52 117 4.61
2-1/2″ 30 1.18 15 0.59 75 2.95 117 4.61 2-1/2″ 27 1.06 15 0.59 66.5 2.62 117 4.61
3″ 30 1.18 15 0.59 75 2.95 117 4.61 3″ 27 1.06 15 0.59 69 2.72 117 4.61
Tolerance: +0.5mm(1/8″~2″) Tolerance: +0.5mm(1/8″~2″)
+0.8mm(2-1/2″~4″) +0.8mm(2-1/2″~4″)

Application



Forged Threaded / Screwed Hex Nipple Application

ASME B16.11 Threaded Hex Nipple are known to deliver exceptional performance and are generally developed
for meeting the demands. We offer a broad range of Forged Screwed Hex Nipple through a worldwide network of
stock-keeping branches. This Forged Threaded Hex Nipple uses in various industries like :
 Stainless Steel Forged Threaded Hex Nipple uses in Oil and Gas Pipeline
 Forged Threaded Hex Nipple uses in Chemical Industry
 Alloy Steel Threaded Hex Nipples uses in Plumbing
 Forged Screwed Hex Nipple uses in Heating
 Threaded Forged Hex Nipple uses in Water Supply Systems
 ANSI B16.11 Forged Threaded Hex Nipple uses in Power Plant
 Threaded Hex Nipple uses in Paper & Pulp Industry
 Forged Screwed Hex Nipples uses in General Purpose Applications
 Forged Threaded Hex Nipple uses in Fabrication Industry
 Forged Screwed Hex Nipple uses in Food Processing Industry
 Forged Threaded Hex Nipples uses in Structural Pipe

Type

ASME B16.11 Forged Threaded / Screwed Hex Nipple Available Types

Forged Threaded Hex Nipple  Forged Screwed Hex Nipples
150 lb. Threaded Fittings  Hex Nipple Threaded Forged Hex Nipple
ASME B16.11 Forged Threaded Hex Nipples  Forged Hex Nipple 3000LB Threaded
Stainless Steel Screwed Hex Nipple Suppliers  SS Forged Threaded Hex Nipple
ANSI B16.11 Forged Threaded Hex Nipples Dealer  BS 3799 Forged Screwed Hex Nipple Exporter
Forged Threaded Hex Nipple Stockholder  Threaded Forged Hex Nipple Distributors
Carbon Steel Threaded Hex Nipples  High Quality Threaded Hex Nipple Manufacturer
ASTM A182 Threaded Stainless Steel Hex Nipples  Duplex Steel Threaded Hex Nipple
Super Duplex Steel Screwed Hex Nipple  Copper Nickel Threaded Hex Nipple
High Nickel Alloy Forged Threaded Hex Nipple  Hastelloy Screwed Hex Nipple Stockist
Titanium Forged Threaded Hex Nipples  Inconel Threaded Hex Nipples
