Threaded / Screwed 45 Deg Elbow
HOME ProductForged Fittings
Threaded / Screwed 45 Deg Elbow

Threaded / Screwed 45 Deg Elbow

【Technology brief】

ASME B16.11 Forged Threaded / Screwed 45 Deg Elbow

【Materia】

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,
API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

【Size】

1/8″ NB TO 4″ NB

Description

HGFF Group Co.,Ltd. is leading exporter, distributor and stockist of Threaded / Screwed 45° Elbow, It is an ISO certified company that provides ultimate convenience to its customers. Elbows are industrial fittings that change the direction of piping. Stainless Steel Threaded / Screwed 45° Elbows are defined as a part of the pipe fitting system. Sometimes, it is referred to as street eighth elbow. These Threaded Elbows make 45° changes of direction in the run of the pipe. It comes in two types; Short Radius Elbow and Long Radius Elbow. The ANSI B16.11 Forged Screwed 45° Elbows are
used in various application industries of which some are sugar mills, fertilizer units, distilleries, etc. The above-mentioned fittings are made
available in customizable sizes as per the clients’ specific requirements. HGFF Group Co.,Ltd. complies with all the national and international standards, thus rising in the markets.

Product Structure

ANSI/ASME B16.11 Threaded 45 Degree Elbow Standard Specification

Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size 1/8″ NB TO 4″ NB
Class 33000 LBS, 6000 LBS, 4500 LBS
Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form 45 Deg Threaded Elbow, Forged Threaded 45° Elbow
Value-Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards of Threaded 45 Deg Elbow

ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

45 Degree Threaded Elbow Material Grades

Stainless Steel Forged Threaded 45 Deg Elbow :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel Forged Threaded 45 Deg Elbow :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel Forged Threaded 45 Deg Elbow :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel Forged Threaded 45 Deg Elbow :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Copper Alloy Steel Forged Threaded 45 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Threaded 45 Deg Elbow :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Technical Parameters

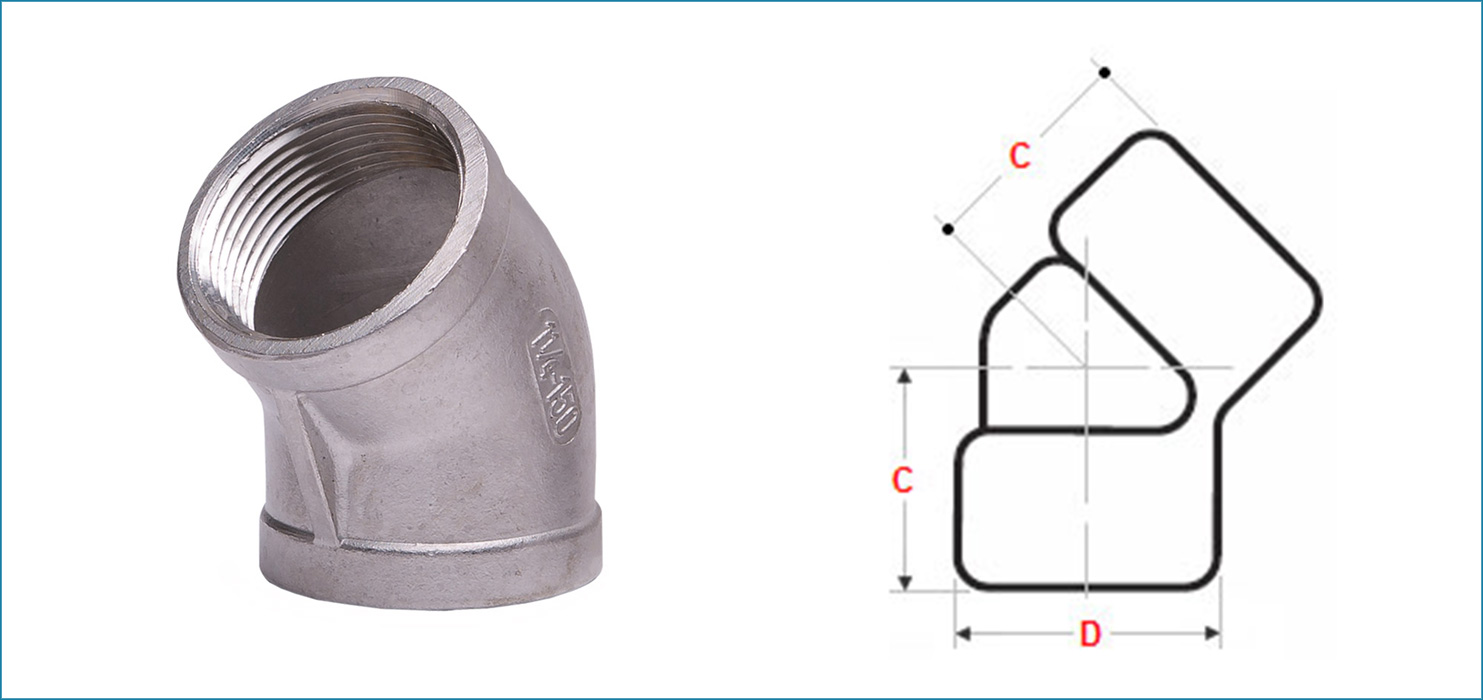

ANSI/ASME B16.11 45 DEGREE THREADED ELBOW DIMENSIONS

Threaded 45 Elbow Dimensions, 45 degree threaded elbow dimensions

45 Degree Threaded Elbow Dimensions NPS 1/2 to 4 Class 2000

NPS Min Length
of Thread
Outside Dia
of Band
Min
WT
Center to End
B J D G 45°
C
1/2 10.9 13.6 33 3.18 22
3/4 12.7 13.9 38 3.18 25
1 14.7 17.3 46 3.68 28
1.1/4 17 18 56 3.89 33
1.1/2 17.8 18.4 62 4.01 35
2 19 19.2 75 4.27 43
2.1/2 23.6 28.9 92 5.61 52
3 25.9 30.5 109 5.99 64
4 27.7 33 146 6.55 79

Threaded 45 Deg Elbow Class 3000 Dimensions NPS 1/2 to 4

NPS Min Length
of Thread
Outside Dia
of Band
Min
WT
Center to End
B J D G 45°
C
1/2 10.9 13.6 38 4.09 25
3/4 12.7 13.9 46 4.32 28
1 14.7 17.3 56 4.98 33
1.1/4 17 18 62 5.28 35
1.1/2 17.8 18.4 75 5.56 43
2 19 19.2 84 7.14 44
2.1/2 23.6 28.9 102 7.65 52
3 25.9 30.5 121 8.84 64
4 27.7 33 152 11.18 79

45 Degree Threaded Elbow Dimensions NPS 1/2 to 4 Class 6000

NPS Min Length
of Thread
Outside Dia
of Band
Min
WT
Center to End
B J D G 45°
C
1/2 10.9 13.6 46 8.15 28
3/4 12.7 13.9 56 8.53 33
1 14.7 17.3 62 9.93 35
1.1/4 17 18 75 10.59 43
1.1/2 17.8 18.4 84 11.07 44
2 19 19.2 102 12.09 52
2.1/2 23.6 28.9 121 15.29 64
3 25.9 30.5 146 16.64 79
4 27.7 33 152 18.67 79

General notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Dimension (B) is minimum length of perfect thread.
    The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.

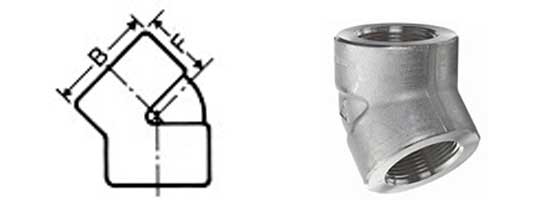

Threaded 45 Degree Elbow Weight

lass 2000 Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 29/32 1  1/16 1  5/16 1  9/16 1 27/32 2  7/32 2 1/2 3  1/32 3 11/16 4  5/16 5 3/4
F 3/4 3/4 1 1 1/8 1 1/4 1  5/16 1 3/8 1 11/16 2  1/16 2 1/2 3 1/8
Wt 0.188 0.236 0.435 0.74 1.058 1.375 1.74 2.883 7.75 11.313 19.125

Class 3000   1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 29/32 1  1/16 1  5/16 1  9/16 1 27/32 2  7/32 2 1/2 3  1/32 3 11/32 4 4 3/4 6
F 3/4 3/4 1 1 1/8 1 1/4 1  5/16 1 3/8 1 11/16 1 3/4 2  1/16 2 1/2 3 1/8
Wt 0.25 0.29 0.5 0.75 1.188 1.988 2.235 3 4.93 7.375 13.588 19.063

Class 6000   1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 1 1/6 1  5/16 1  9/16 1 27/32 2  7/32 2 1/2 3  1/32 3 11/32 4 4 3/4 5 3/4
F 3/4 1 1 1/8 1 1/4 1  5/16 1 3/8 1 11/16 1 3/4 2  1/16 2 1/2 3 1/8
Wt 0.25 0.64 0.5 1.438 2.188 2.785 4.688 5.75 9.5 15 30.563



Application



Forged Threaded / Screwed 45 Deg Elbow Application

ASME B16.11 45 Degree Threaded / Screwed Elbow are known to deliver exceptional performance and are
generally developed for meeting the demands. We offer a broad range of Forged 45 Degree Threaded Elbow
through a worldwide network of stock-keeping branches. This 45Deg. Threaded Elbow is used in various
industries like :
 Stainless Steel 45° Forged Screwed Elbow uses in Oil and Gas Pipeline
 45° Forged Threaded Pipe Elbow uses in Chemical Industry
 Alloy Steel 45° Screwed Elbow uses in Plumbing
 Forged Threaded 45 Degree Pipe Elbow uses in Heating
 45 Degree Forged Elbow uses in Water Supply Systems
 ANSI B16.11 Forged 45° Screwed Pipe Elbow uses in Power Plant
 45° Screwed Elbow uses in Paper & Pulp Industry
 45° Degree Threaded Elbow uses in General Purpose Applications
 Forged Screwed 45° Long Radius Elbow uses in Fabrication Industry
 45° Forged Threaded Elbow uses in Food Processing Industry
 Forged Threaded 45° Short Radius Elbow uses in Structural Pipe

Type

ASME B16.11 Forged Threaded / Screwed 45 Deg Elbow Available Types

Forged Threaded Elbow 45 Degree  Forged Screwed Long Radius 45 Degree Elbows
150 lb. Threaded Fittings Pipe Elbow  Threaded 45° Short Radius Elbow
ASME B16.11 45 deg Threaded Elbow  45 Degree Elbow 3000LB Threaded
Stainless Steel 45 Degree  Screwed Pipe Elbow
Suppliers SS 45 Deg.  Forged Screwed Elbows
ANSI B16.11 45 Degree Forged Elbow Dealer  BS 3799 Forged 45 Degree Screwed Elbow Exporter
Forged Threaded 45 Deg Elbow Stockholder  Threaded 45° Pipe Elbow Distributors
Carbon Steel Threaded 45deg.Elbow  High Quality Threaded 45° Elbow Manufacturer
ASTM A182 Threaded Stainless Steel 45 Deg Elbows  Duplex Steel 45° Threaded Pipe Elbow
Super Duplex Steel 45 Deg Screwed Elbow  Copper Nickel Threaded 45 Deg Elbow
High Nickel Alloy 45° Forged Threaded Elbow  Hastelloy Threaded 45° Pipe Elbow Stockist
Titanium 45 Degree Screwed Elbow  Inconel Threaded 45 Deg Pipe Elbow
