Threaded / Screwed Tee
HOME ProductForged Fittings
Threaded / Screwed Tee

Threaded / Screwed Tee

【Technology brief】

ASME B16.11 Forged Threaded / Screwed Equal Tee

【Materia】

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,
API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

【Size】

 1/8″ NB TO 4″ NB

Description

HGFF Group Co.,LTD is a highly acclaimed manufacturer of ASME B16.11 Threaded Tee, which is very much resistant to chemical corrosion and oxidation (corrosion resistant), and has some high stress-rupture effectiveness and low creep rates under high stresses at temperatures after suitable heat treatment. Threaded Equal Tee is either used to combine or split a fluid flow. Threaded Pipe Tee has the same inlet and outlet sizes. Threaded Tee Fittings are used in different industries applications like chemical processing, oil refineries, petrochemical and many other industries. We also supply Forged Threaded Tee in customized size as per customer requirement. We manufacture Threaded Tee Dimensions in accordance with ASME B16.11 / BS 3799. The B16.11 standard covers pressure-temperature ratings, dimensions, marking, tolerances and material requirements. We are specialized in supplying Threaded Tee in three pressure ratings: class 2000, Class 3000 and 6000 at a reasonable price in China. Check Threaded Pipe Tee Dimensions Chart before buy.

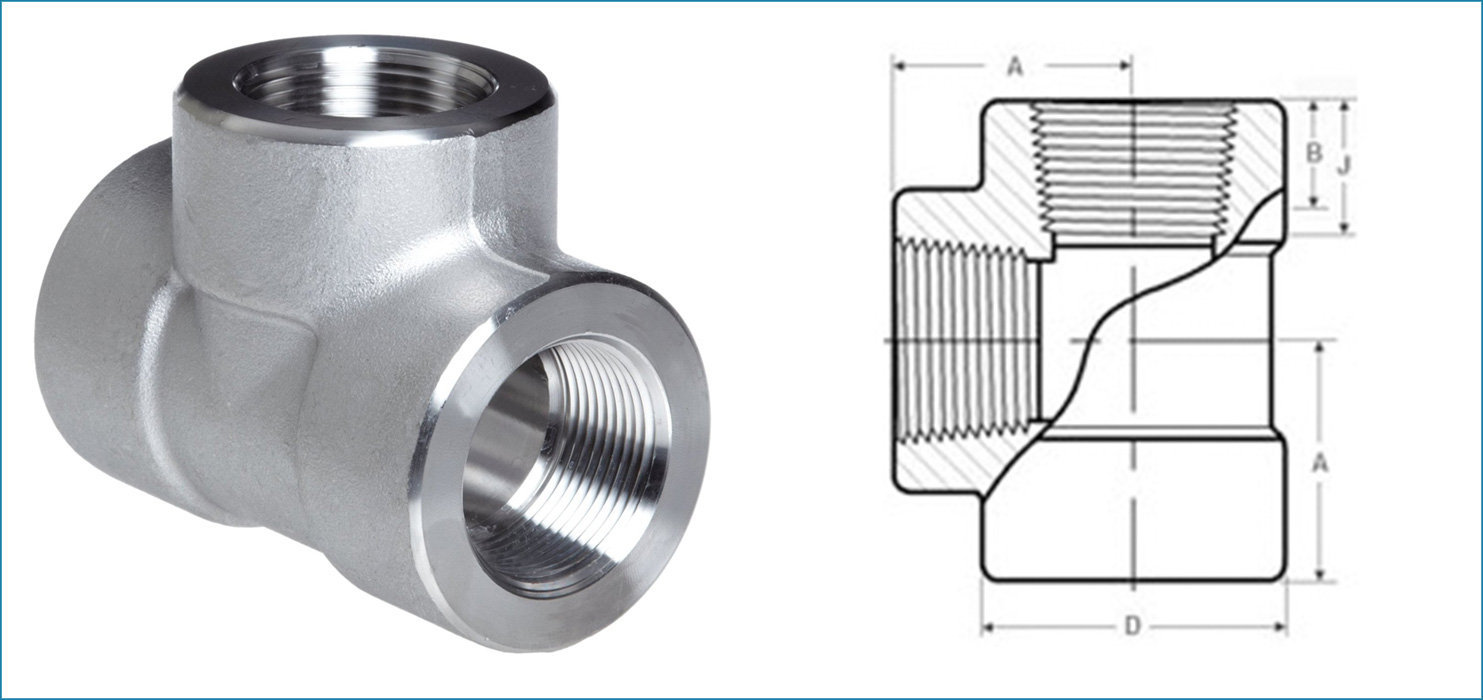

Product Structure

ANSI/ASME B16.11 Threaded Pipe Tee Standard Specification

Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size 1/8″~4″ (DN6~DN100)
Class 3000 LBS, 6000 LBS, 9000 LBS
Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form Threaded Tee, Threaded Pipe Tee, Threaded Equal Tee
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards of Threaded Equal Tee

ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

ASME B16.11 Threaded Tee Material Grades

Stainless Steel Forged Threaded Tee :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel Forged Threaded Equal Tee:
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel Forged Threaded Tee:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel Forged Threaded Equal Tee :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Copper Alloy Steel Forged Threaded Tee : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Threaded Equal Tee:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)



Technical Parameters

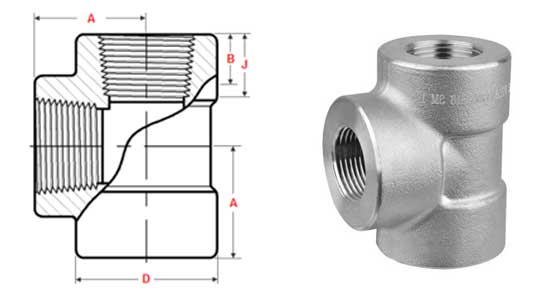

ANSI/ASME B16.11 THREADED TEE DIMENSIONS

Threaded Pipe Tee Dimensions Chart

Threaded Tee Dimensions, 3/4 Threaded Tee Dimensions NPS 1/2 to 4 Class 2000

NPS Min Length of Thread Outside Dia of Band
D
Center to End
A
Min
WT
B J
1/2 10.9 13.6 33 28 3.18
3/4 12.7 13.9 38 33 3.18
1 14.7 17.3 46 38 3.68
1.1/4 17 18 56 44 3.89
1.1/2 17.8 18.4 62 51 4.01
2 19 19.2 75 60 4.27
2.1/2 23.6 28.9 92 76 5.61
3 25.9 30.5 109 86 5.99
4 27.7 33 146 106 6.55

Threaded Equal Tee Class 3000 Dimensions NPS 1/2 to 4

NPS Min Length of Thread Outside Dia of Band
D
Center to End
A
Min
WT
B J
1/2 10.9 13.6 38 33 4.09
3/4 12.7 13.9 46 38 4.32
1 14.7 17.3 56 44 4.98
1.1/4 17 18 62 51 5.28
1.1/2 17.8 18.4 75 60 5.56
2 19 19.2 84 64 7.14
2.1/2 23.6 28.9 102 83 7.65
3 25.9 30.5 121 95 8.84
4 27.7 33 152 114 11.18


3/4 Threaded Tee Dimensions NPS 1/2 to 4 Class 6000

NPS Min Length of Thread Outside Dia of Band
D
Center to End
A
Min
WT
B J
1/2 10.9 13.6 46 38 8.15
3/4 12.7 13.9 56 44 8.53
1 14.7 17.3 62 51 9.93
1.1/4 17 18 75 60 10.59
1.1/2 17.8 18.4 84 64 11.07
2 19 19.2 102 83 12.09
2.1/2 23.6 28.9 121 95 15.29
3 25.9 30.5 146 106 16.64
4 27.7 33 152 114 18.67

General notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Dimension B is minimum length of perfect thread.
    The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.

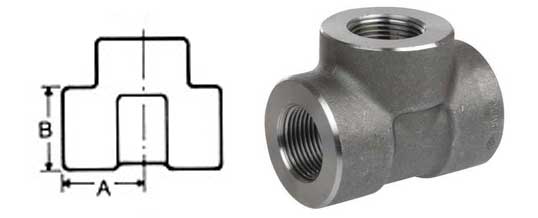

ASME B16.11 Threaded Tee Weight

Class 2000 Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 29/32 1  1/16 1  5/16 1  9/16 1 27/32 2  7/32 2 1/2 3  1/32 3 11/16 4  5/16 5 3/4
F 3/4 3/4 1 1 1/8 1 1/4 1  5/16 1 3/8 1 11/16 2  1/16 2 1/2 3 1/8
Wt 0.188 0.236 0.435 0.74 1.058 1.375 1.74 2.883 7.75 11.313 19.125

Class 3000   1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 29/32 1  1/16 1  5/16 1  9/16 1 27/32 2  7/32 2 1/2 3  1/32 3 11/32 4 4 3/4 6
F 3/4 3/4 1 1 1/8 1 1/4 1  5/16 1 3/8 1 11/16 1 3/4 2  1/16 2 1/2 3 1/8
Wt 0.25 0.29 0.5 0.75 1.188 1.988 2.235 3 4.93 7.375 13.588 19.063

Class 6000   1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 1 1/6 1  5/16 1  9/16 1 27/32 2  7/32 2 1/2 3  1/32 3 11/32 4 4 3/4 5 3/4
F 3月4日 1 1 1/8 1 1/4 1  5/16 1 3/8 1 11/16 1 3/4 2  1/16 2 1/2 3 1/8
Wt 0.25 0.64 0.5 1.438 2.188 2.785 4.688 5.75 9.5 15 30.563



Aplication



Forged Threaded / Screwed Equal Tee Application

ASME B16.11 Threaded Tee is known to deliver exceptional performance and are generally developed for
meeting the demands. We offer a broad range of Forged Screwed Tee through a worldwide network of stock-keeping branches. This Forged Threaded Tee is use in various industries like :
 Stainless Steel Forged Threaded Tee uses in Oil and Gas Pipeline
 Forged Threaded Tee uses in Chemical Industry
 Alloy Steel Threaded Equal Tee uses in Plumbing
 Forged Screwed Equal Tee uses in Heating
 Threaded Forged Tee uses in Water Supply Systems
 ANSI B16.11 Forged Threaded Tee uses in Power Plant
 Threaded Equal Tee uses in Paper & Pulp Industry
 Forged Screwed Equal Tee uses in General Purpose Applications
 Forged Threaded Tee uses in Fabrication Industry
 Forged Screwed Equal Tee uses in Food Processing Industry
 Forged Threaded Equal Tee uses in Structural Pipe

Type

ASME B16.11 Forged Threaded / Screwed Equal Tee Available Types

Forged Threaded Tee  Forged Screwed Equal Tees
150 lb. Threaded Fittings Pipe Tee  Threaded Forged Equal Tee
ASME B16.11 Forged Threaded Tee  Forged Tee 3000LB Threaded
Stainless Steel Screwed Equal Tee  Suppliers SS Forged Threaded Equal Tees
ANSI B16.11 Forged Threaded Tee Dealer  BS 3799 Forged Screwed Equal Tee Exporter
Forged Threaded Tee Stockholder  Threaded Forged Pipe Tee Distributors
Carbon Steel Threaded Equal Tee  High Quality Threaded Tee Manufacturer
ASTM A182 Threaded Stainless Steel Tees  Duplex Steel Threaded Equal Tee
Super Duplex Steel Screwed Equal Tee  Copper Nickel Threaded Equal Tee
High Nickel Alloy Forged Threaded Tee  Hastelloy Screwed Tee Stockist
Titanium Forged Threaded Tee  Inconel Threaded Equal Tee
