Threaded / Screwed Cross
HOME ProductForged Fittings
Threaded / Screwed Cross

Threaded / Screwed Cross

【Technology brief】

ASME B16.11 Forged Threaded / Screwed Equal Cross

【Materia】

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,
API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

【Size】

 1/8″ NB TO 4″ NB

Description

HGFF Group Co.,Ltd. is leading manufacturer, stockist and supplier of Threaded / Screwed Cross Fittings. It is a company that has received ISO certification and one who provides ultimate convenience to its customers. Threaded Cross fittings make a 90° the branch from the main run of the pipe. It can be used for providing leak-free and torque free sealing in any piping or tubing connection. It is a fitting that is rarely used in a piping system but is an essential part of it nonetheless. Stainless Steel Screwed Cross has two types; straight and reducing. These fittings have one inlet and three outlets or vice versa. ANSI B16.11 Threaded / Screwed Crosses produced by HGFF Group Co., Ltd. are designed along the lines of international standards.

Product Structure

ANSI/ASME B16.11 Threaded Pipe Cross Standard Specification

Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size 1/8″~4″ (DN6~DN100)
Class 3000 LBS, 6000 LBS, 9000 LBS
Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form Threaded Cross, Threaded Pipe Cross, Threaded Equal Cross
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards of Threaded Equal Cross

ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

ASME B16.11 Threaded Cross Material Grades

Stainless Steel Forged Threaded Pipe Cross :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel Forged Threaded Equal Cross:
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel Forged Threaded Cross:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel Forged Threaded Equal Cross :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Copper Alloy Steel Forged Threaded Cross : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Threaded Equal Cross:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Technical Parameters

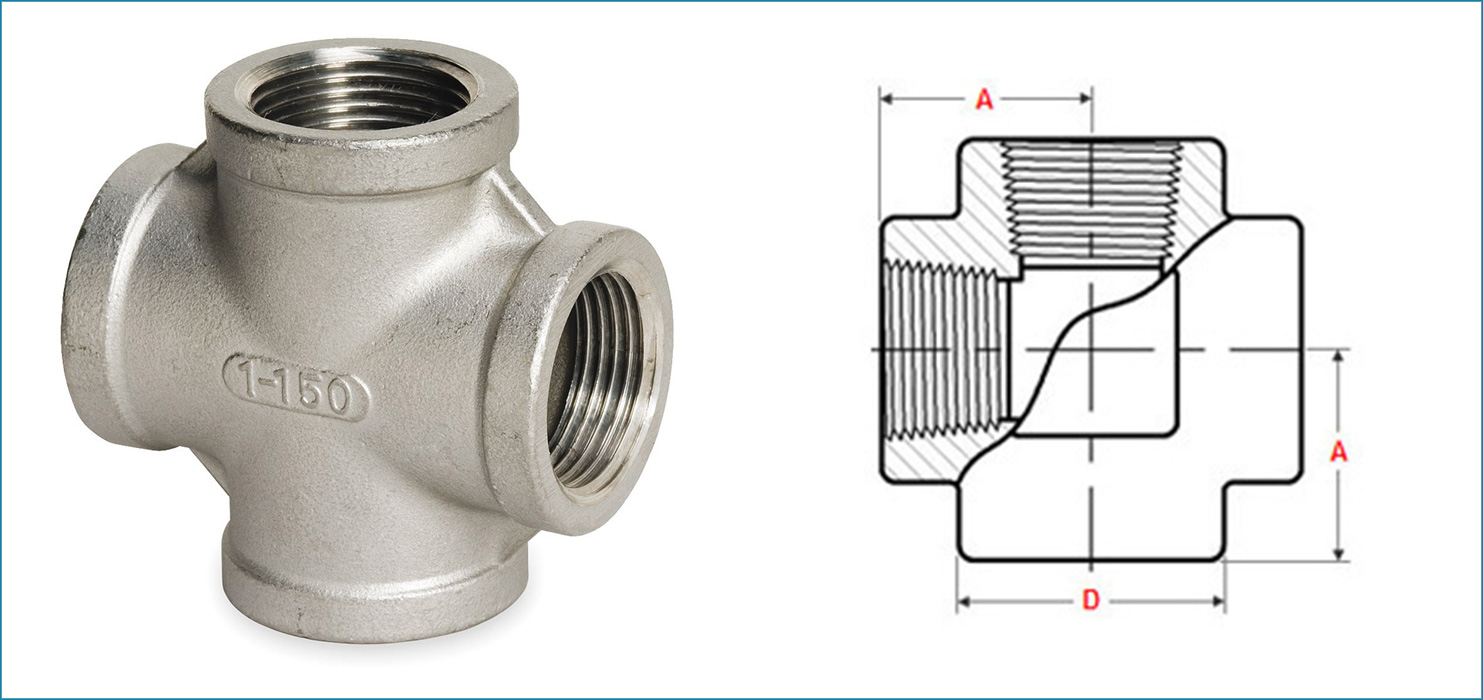

ANSI/ASME B16.11 THREADED CROSS DIMENSIONS

Threaded Pipe Cross Dimensions Chart

Threaded Cross Dimensions NPS 1/2 to 4 Class 2000

NPS Min Length of Thread Outside Dia of Band
D
Center to End
A
Min
WT
B J
1/2 10.9 13.6 33 28 3.18
3/4 12.7 13.9 38 33 3.18
1 14.7 17.3 46 38 3.68
1.1/4 17 18 56 44 3.89
1.1/2 17.8 18.4 62 51 4.01
2 19 19.2 75 60 4.27
2.1/2 23.6 28.9 92 76 5.61
3 25.9 30.5 109 86 5.99
4 27.7 33 146 106 6.55

Threaded Equal Cross Class 3000 Dimensions NPS 1/2 to 4

NPS Min Length of Thread Outside Dia of Band
D
Center to End
A
Min
WT
B J
1/2 10.9 13.6 38 33 4.09
3/4 12.7 13.9 46 38 4.32
1 14.7 17.3 56 44 4.98
1.1/4 17 18 62 51 5.28
1.1/2 17.8 18.4 75 60 5.56
2 19 19.2 84 64 7.14
2.1/2 23.6 28.9 102 83 7.65
3 25.9 30.5 121 95 8.84
4 27.7 33 152 114 11.18


Threaded Cross Dimensions NPS 1/2 to 4 Class 6000

NPS Min Length of Thread Outside Dia of Band
D
Center to End
A
Min
WT
B J
1/2 10.9 13.6 46 38 8.15
3/4 12.7 13.9 56 44 8.53
1 14.7 17.3 62 51 9.93
1.1/4 17 18 75 60 10.59
1.1/2 17.8 18.4 84 64 11.07
2 19 19.2 102 83 12.09
2.1/2 23.6 28.9 121 95 15.29
3 25.9 30.5 146 106 16.64
4 27.7 33 152 114 18.67

General notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Dimension B is minimum length of perfect thread.
    The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.

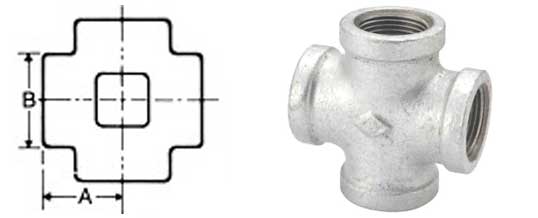

ASME B16.11 Threaded Cross Weight

Class 2000 Nominal 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
Pipe
Size
A 7/8 31/32 1 1/8 1  5/16 1 1/2 1 3/4 2 2 3/8 3 3 3/8 4  3/16
B 29/32 1  1/16 1  5/16 1  9/16 1 27/32 2  7/32 2 1/2 3  1/32 3 11/16 4  5/16 5 3/4
Wt 0.5 0.46 0.777 1.125 1.688 2.45 3.188 5.56 16.438 19.5 32.688

Class 3000   1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 7/8 31/32 1 1/8 1  5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 1/2
B 29/32 1  1/16 1  5/16 1  9/16 1 27/32 2  7/32 2 1/2 3  1/32 3 11/32 4 4 3/4 6
Wt 0.438 0.567 0.97 1.5 2.5 3.62 4.125 6.5 8.125 16.75 25.675 32

Class 6000   1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 31/32 1 1/8 1  5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4  3/16 4 1/2
B 1 1/6 1  5/16 1  9/16 1 27/32 2  7/32 2 1/2 3  1/32 3 11/32 4 4 3/4 5 3/4 6
Wt 0.563 1.188 1.5 2.75 4.313 6.625 10.75 11.5 22.188 27.5 54 43.5



Application



Forged Threaded / Screwed Equal Cross Application

ASME B16.11 Threaded Cross is known to deliver exceptional performance and are generally developed for
meeting the demands. We offer a broad range of Forged Screwed Cross through a worldwide network of stock-keeping branches. This Forged Threaded Cross is used in various industries like :
 Stainless Steel Forged Threaded Cross uses in Oil and Gas Pipeline
 Forged Threaded Cross uses in Chemical Industry
 Alloy Steel Threaded Equal Cross uses in Plumbing
 Forged Screwed Equal Cross uses in Heating
 Threaded Forged Equal Cross uses in Water Supply Systems
 ANSI B16.11 Forged Threaded Cross uses in Power Plant
 Threaded Equal Cross uses in Paper & Pulp Industry
 Forged Screwed Equal Cross uses in General Purpose Applications
 Forged Threaded Cross uses in Fabrication Industry
 Forged Screwed Equal Cross uses in Food Processing Industry
 Forged Threaded Equal Cross uses in Structural Pipe

Type



ASME B16.11 Forged Threaded / Screwed Equal Cross Available Types

Forged Threaded Cross  Forged Screwed Equal Cross
150 lb. Threaded Fittings Cross  Threaded Forged Equal Cross
ASME B16.11 Forged Threaded Cross  Forged Cross 3000LB Threaded
Stainless Steel Screwed Equal Cross Suppliers  SS Forged Threaded Equal Cross
ANSI B16.11 Forged Threaded Cross Dealer  BS 3799 Forged Screwed Equal Cross Exporter
Forged Threaded Cross Stockholder  Threaded Forged Equal Cross Distributors
Carbon Steel Threaded Equal Cross  High Quality Threaded Cross Manufacturer
ASTM A182 Threaded Stainless Steel Cross  Duplex Steel Threaded Equal Cross
Super Duplex Steel Screwed Equal Cross  Copper Nickel Threaded Equal Cross
High Nickel Alloy Forged Threaded Cross Hastelloy Screwed Cross Stockist
Titanium Forged Threaded Cross  Inconel Threaded Equal Cross
