Threaded / Screwed Hex Plug
HOME ProductForged Fittings
Threaded / Screwed Hex Plug

Threaded / Screwed Hex Plug

【Technology brief】

ASME B16.11 Forged Threaded / Screwed Hex Plug

【Materia】

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B,
API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

【Size】

1/8″ NB TO 4″ NB

Description

HGFF Group Co., Ltd. is rising as an exporter and manufacturer of Threaded / Screwed Hex Plugs. It is a company that has received an ISO certification and ensures customer satisfaction. A Stainless Steel Hex Plug is also referred to as a Hexagon Plug. These ANSI B16.11 Threaded Hex Plugs are an important type of pipe fitting. Its basic purpose is the stop the flow. The top of this plug takes a hexagonal shape. These plugs are considered as an easy and cost-effective
method to plug a pipe. It is created using modern technology and also offers clients easy installation and maintenance. It is crack resistant and provides optimum performance. These fittings as mentioned above can be availed from us in different sizes, shapes and thickness
as per the precise requirements of the clients.

Product Structure

ANSI/ASME B16.11 Plug Standard

Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size 1/8″ NB TO 4″ NB
Class 3000 LBS, 6000 LBS, 9000 LBS
Type Threaded (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form Threaded Plug, Hex Head Plug, Hex Plug, Pipe Plug
Value-Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

ASME B16.11 Threaded Plug Dimensions Standrad

ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

ASME B16.11 Threaded Pipe Plug Material

ASME B16.11 Stainless Steel Forged Threaded Plug :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel ASME B16.11 Forged Threaded Plug:
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel ASME B16.11 Forged Threaded Plug:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

ASME B16.11 Alloy Steel Forged Threaded Pipe Plug:
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

ASME B16.11 Copper Alloy Steel Forged Threaded Hex Plug: ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Threaded ASME B16.11 Hex Head Plug:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)



Technical Parameters

ANSI/ASME B16.11 THREADED PLUG DIMENSIONS

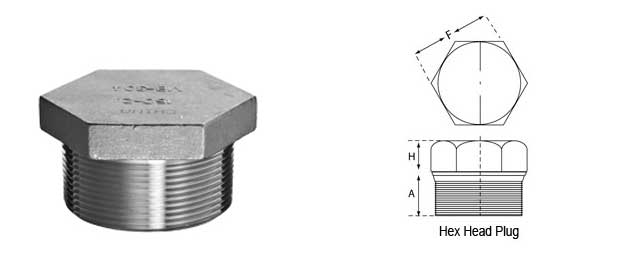

Threaded Hex Plug Dimensions

DIMENSIONS OF THREADED PLUG (BS 3799) (In mm)
Nominal
Pipe
Size
Length
(Minimim)
A

Plugs Square Head Plugs Round Head Hex Plugs & Bushings
Height of
Square
(Minimum)
B
Width
Flats
(Minimum)
C
Nominal
Diameter
of Head
E
Length
(Minimum)
D
Width Flats
(Nominal)
F
Hex Height (Min.)
Bushing
G
Plug
H
1/8” 9.7 6.6 7.1 10.4 35.1 11.2 6.4
1/4” 11.2 6.6 9.7 13.5 41.1 15.7 3.0 6.4
3/8” 12.7 7.9 11.2 17.5 41.1 17.5 4.1 7.9
1/2” 14.2 9.7 14.2 21.3 44.5 22.4 4.8 7.9
3/4” 15.7 11.2 15.7 26.9 44.5 26.9 5.6 9.7
1” 19.1 12.7 20.6 33.3 50.8 35.1 6.4 9.7
1-1/4” 20.6 14.2 23.9 42.9 50.8 44.5 7.1 14.2
1-1/2” 20.6 15.7 28.4 48.5 50.8 50.8 7.9 15.7
2” 22.4 17.5 33.3 60.5 63.5 63.5 8.6 17.5
2-2/2” 26.9 19.1 38.1 73.2 69.9 76.2 9.7 19.1
3” 28.4 20.6 42.9 88.9 69.9 88.9 10.4 20.6
4” 31.8 25.4 53.5 114.3 76.2 117.3 12.7 25.4

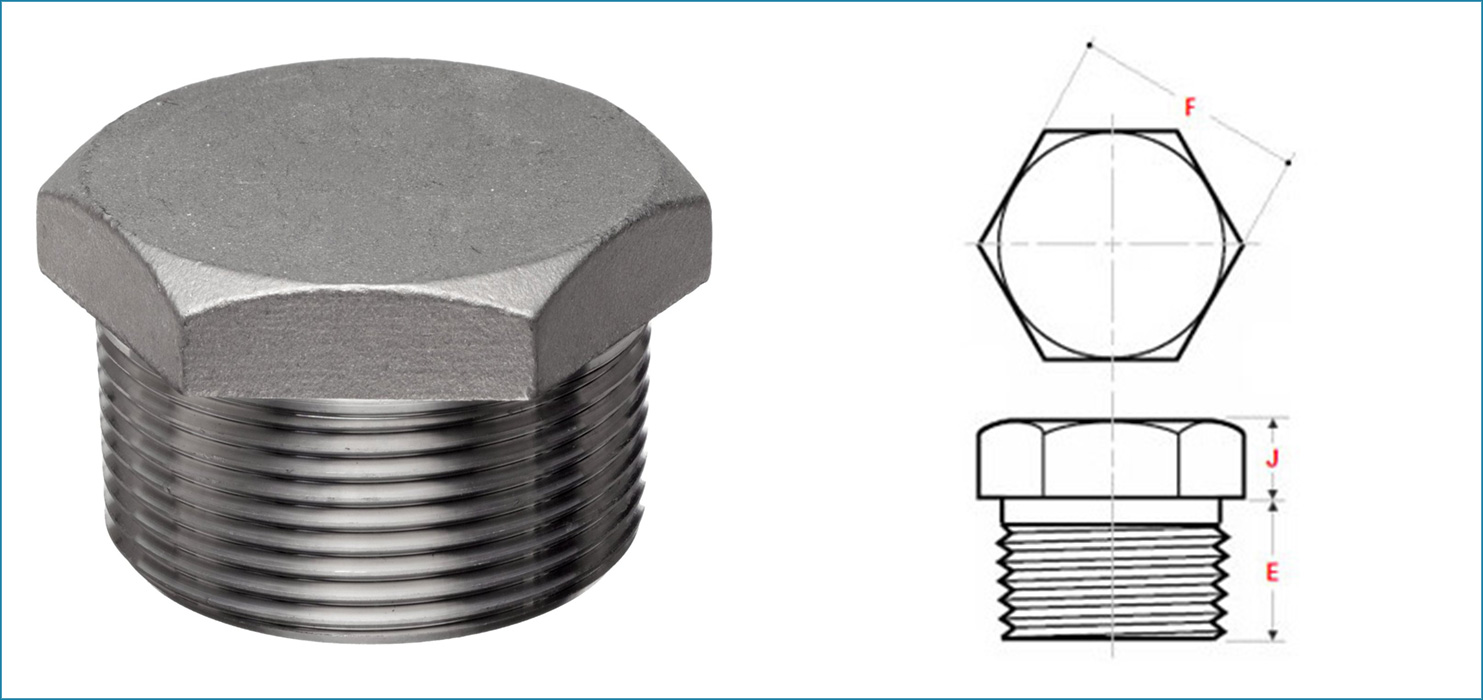

ASME B16.11 Threaded Plug Sizes

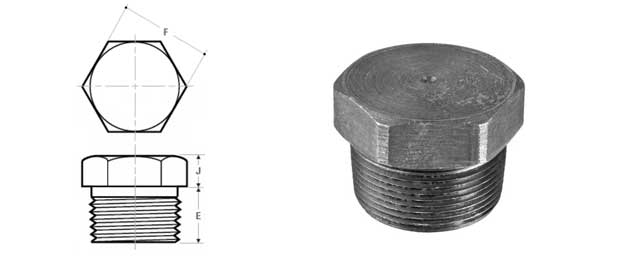

Threaded Hex Plug Sizes – NPS 1/2 to 4

NPS Minimum Length
E
Minimum Hex Height
J
Nominal
F
1/2 14 8 22
3/4 16 10 27
1 19 10 35
1.1/4 21 14 44.5
1.1/2 21 16 51
2 22 18 63.5
2.1/2 27 19 76
3 28 21 89
4 32 25 117.5

Application



Forged Threaded / Screwed Hex Plug Application

ASME B16.11 Threaded Hex Plug is known to deliver exceptional performance and are generally developed for
meeting the demands. We offer a broad range of Forged Screwed Hex Head Plug through a worldwide network of
stock-keeping branches. This Forged Threaded Hex Plug is used in various industries like :
 Stainless Steel Forged Threaded Hex Plug uses in Oil and Gas Pipeline
 Forged Threaded Hex Plug uses in Chemical Industry
 Alloy Steel Threaded Hex Plugs uses in Plumbing
 Forged Screwed Hex Plug uses in Heating
 Threaded Forged Hex Plug uses in Water Supply Systems
 ANSI B16.11 Forged Threaded Hex Plug uses in Power Plant
 Threaded Hex Head Plug uses in Paper & Pulp Industry
 Forged Screwed Hex Plugs uses in General Purpose Applications
 Forged Threaded Hex Plug uses in Fabrication Industry
 Forged Screwed Hex Plug uses in Food Processing Industry
 Forged Threaded Hex Plugs uses in Structural Pipe

Type

ASME B16.11 Forged Threaded / Screwed Hex Plug Available Types

Threaded Fittings Hex Plug  Threaded Forged Head Hex Plug
ASME B16.11 Forged Threaded Hex Plugs  Forged Hex Plug 3000LB Threaded
Stainless Steel Screwed Hex Plug Suppliers  SS Forged Threaded Hex Plug
ANSI B16.11 Forged Threaded Hex Plugs Dealer  BS 3799 Forged Screwed Hex Plug Exporter
Forged Threaded Hex Plug Stockholder  Threaded Forged Hex Plug Distributors
Carbon Steel Threaded Hex Head Plugs  High Quality Threaded Hex Plug Manufacturer
ASTM A182 Threaded Stainless Steel Hex Plugs  Duplex Steel Threaded Hex Plug
Super Duplex Steel Screwed Hex Plug  Copper Nickel Threaded Hex Plug
High Nickel Alloy Forged Threaded Hex Plug  Hastelloy Screwed Hex Head Plug Stockist
Titanium Forged Threaded Hex Plugs  Inconel Threaded Hex Plugs
